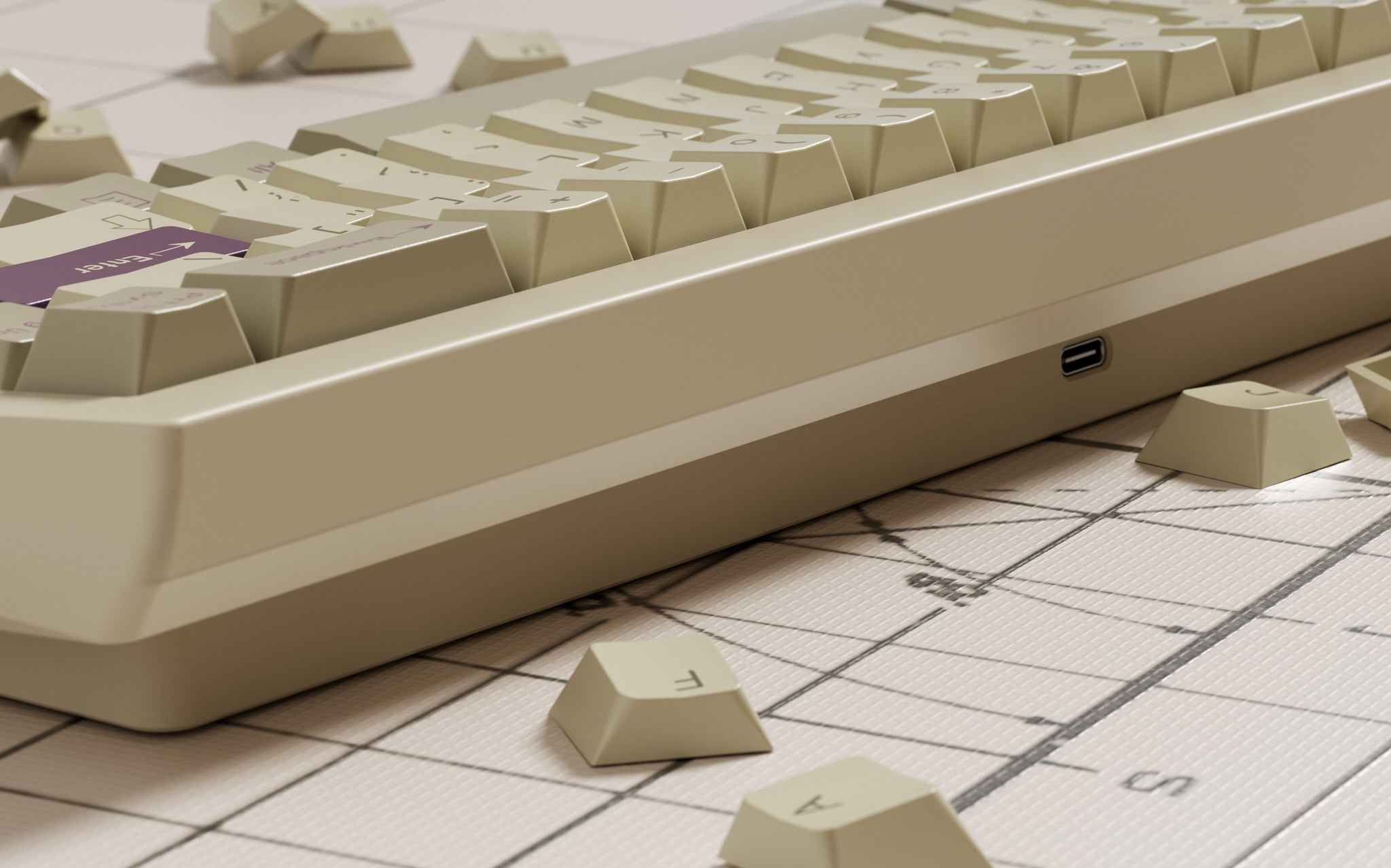

Wind SIN65 [GB]

GB: 19日 9月 to 19日 10月 2023
日本国内送料無料
出荷予定日: 2024 Q1

The Sinx formula Graph has been used in our mathematics learning throughout our school days. The image of the sinx formula Graph is a beautiful wavy curve, Centered on the origin of the X-axis and Y-axis，it extends upwards and downwards, forming a wavy shape that resembles peaks and valleys. Speaking of this, if you haven't been in touch with friends who forgot the sin formula for a long time, the image of the function will definitely appear in your mind, oh, it turned out to be this, remember it.

Specification:

• Size: 33.6*12*3.35cm
• 7° Typing angle
• 65% Layout

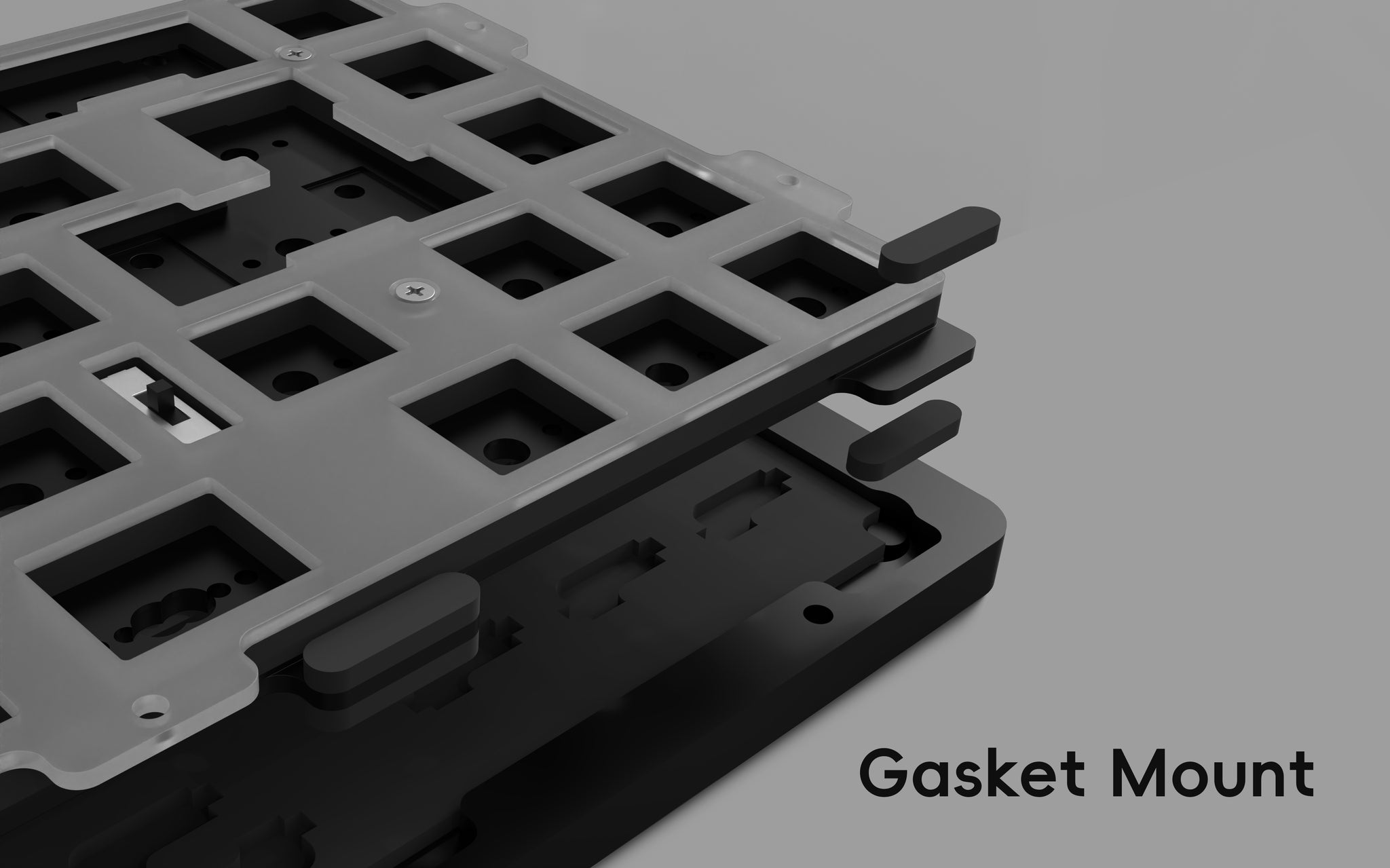

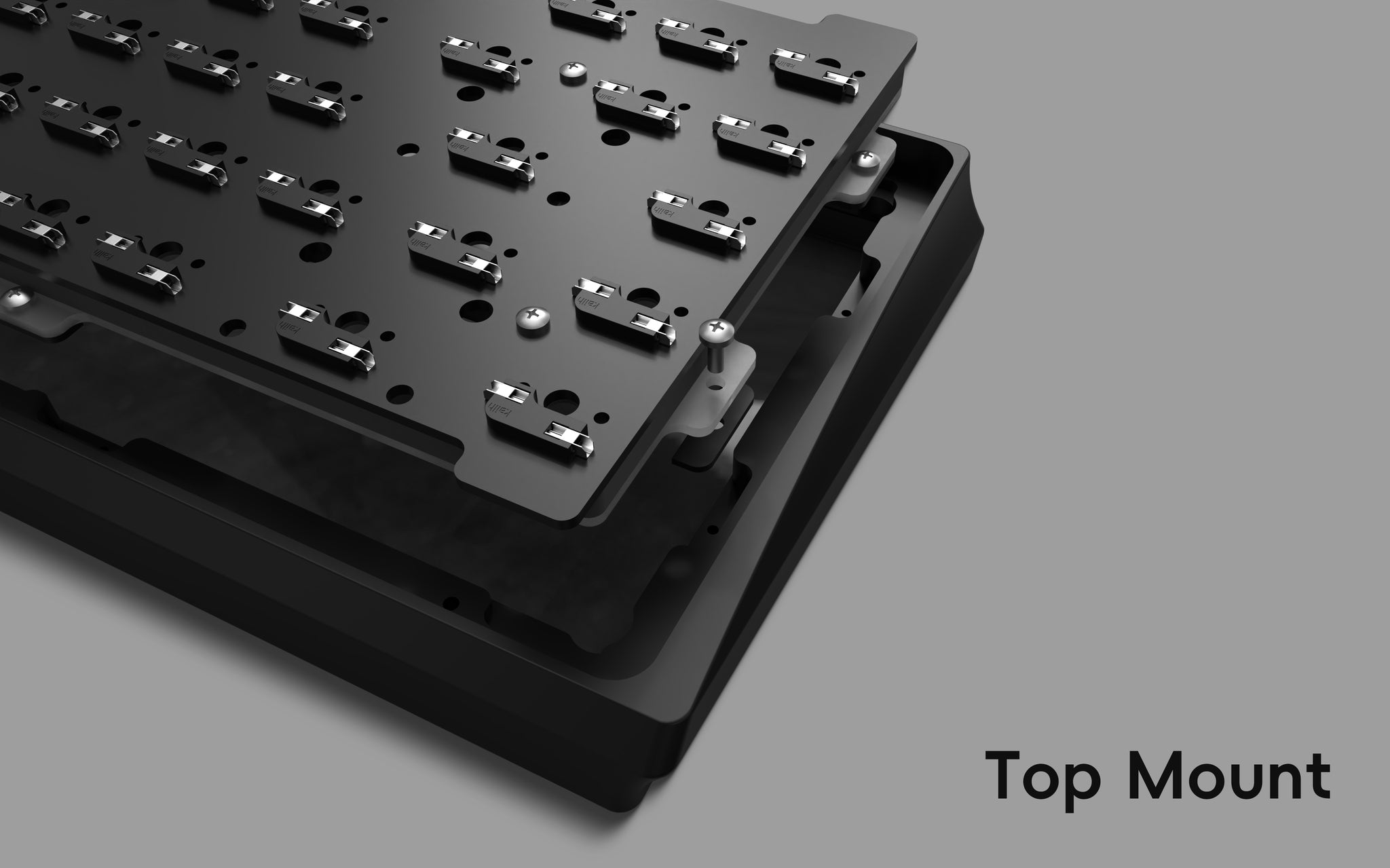

• TOP mount and PCB gasket mount design
• Price：Wired $288,Bluetooth $308
• PCB:1.6mm black core board fr4. Wired hotswap, bluetooth hotswap, wired soldered available

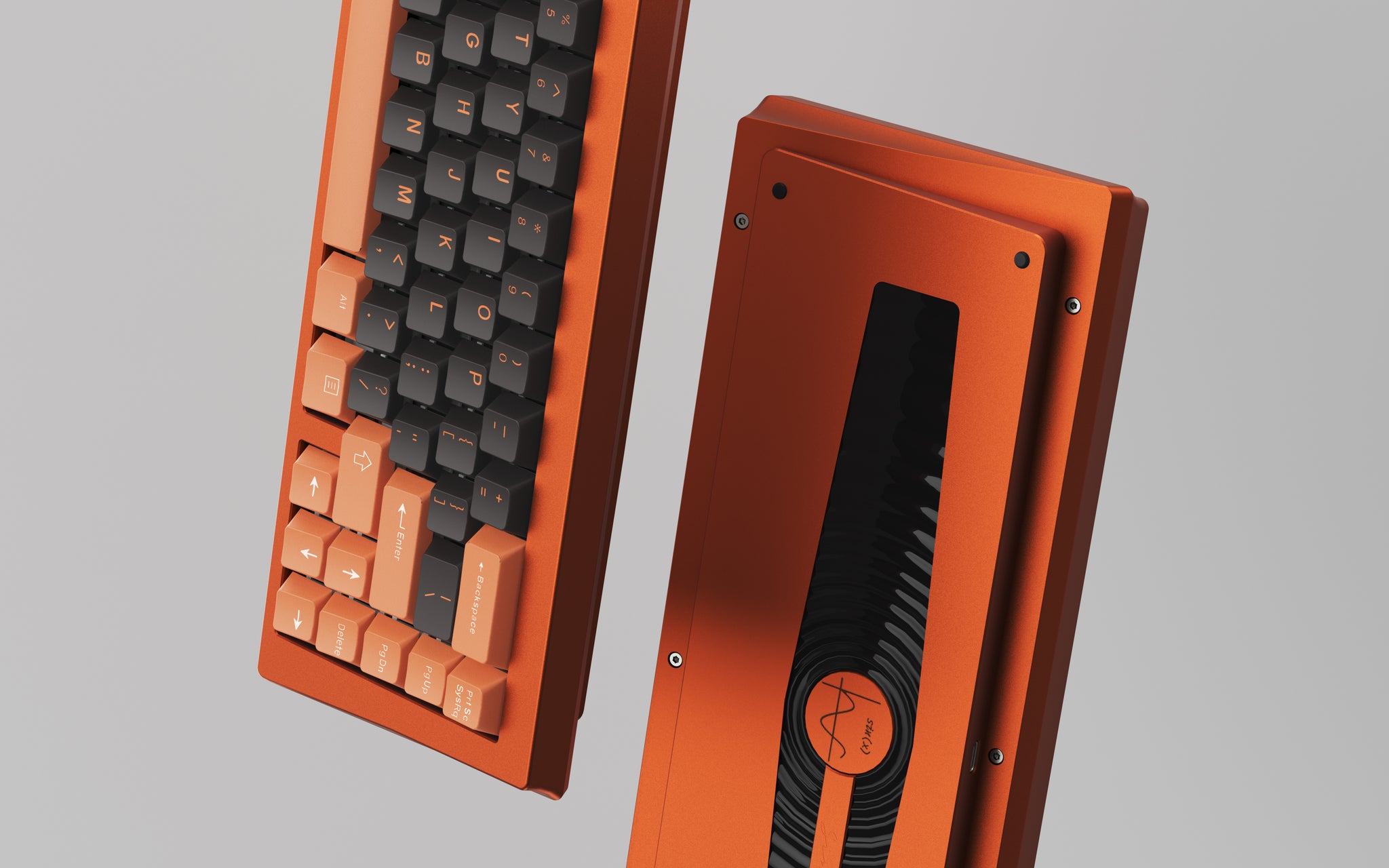

• Case material:

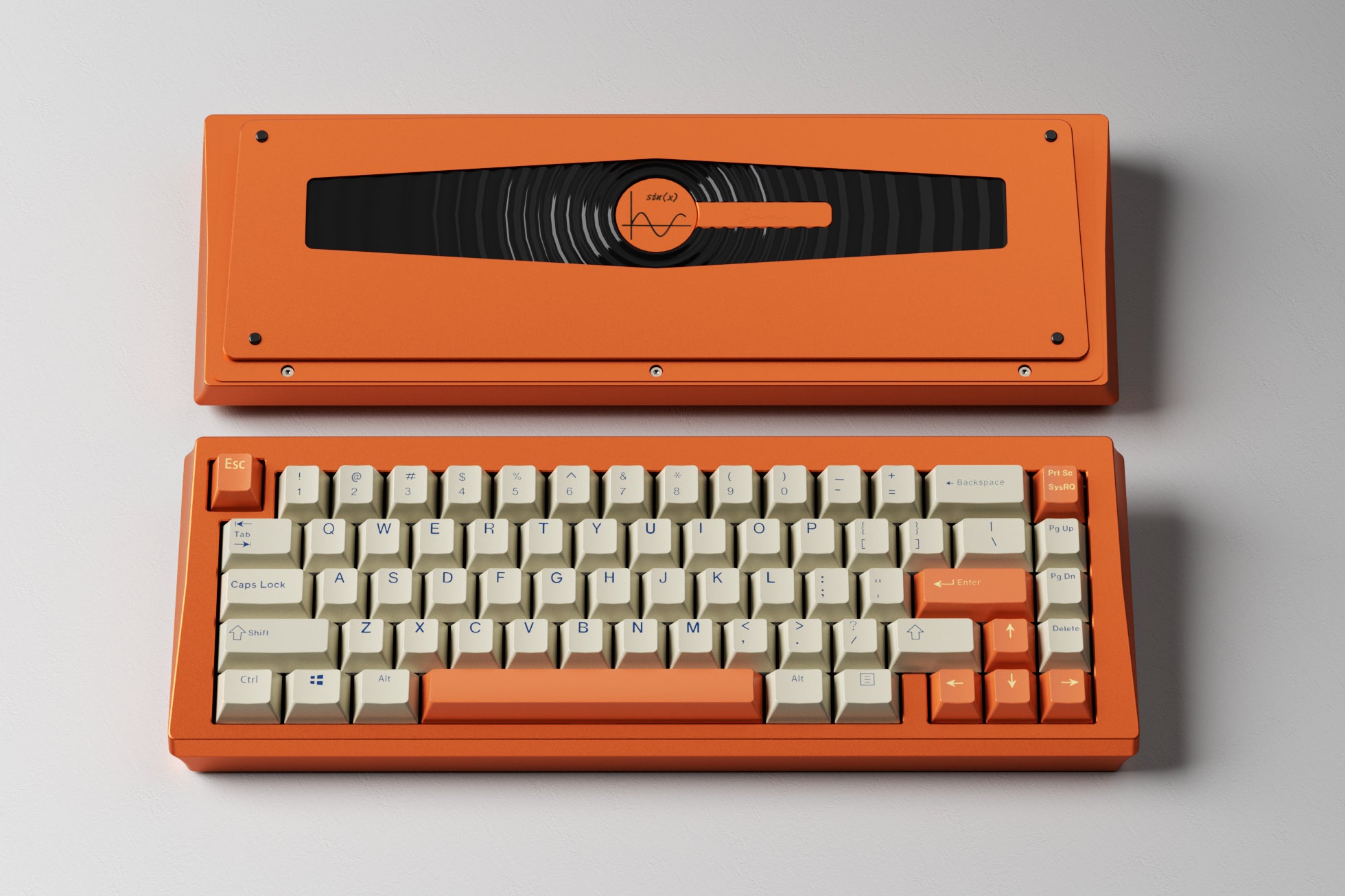

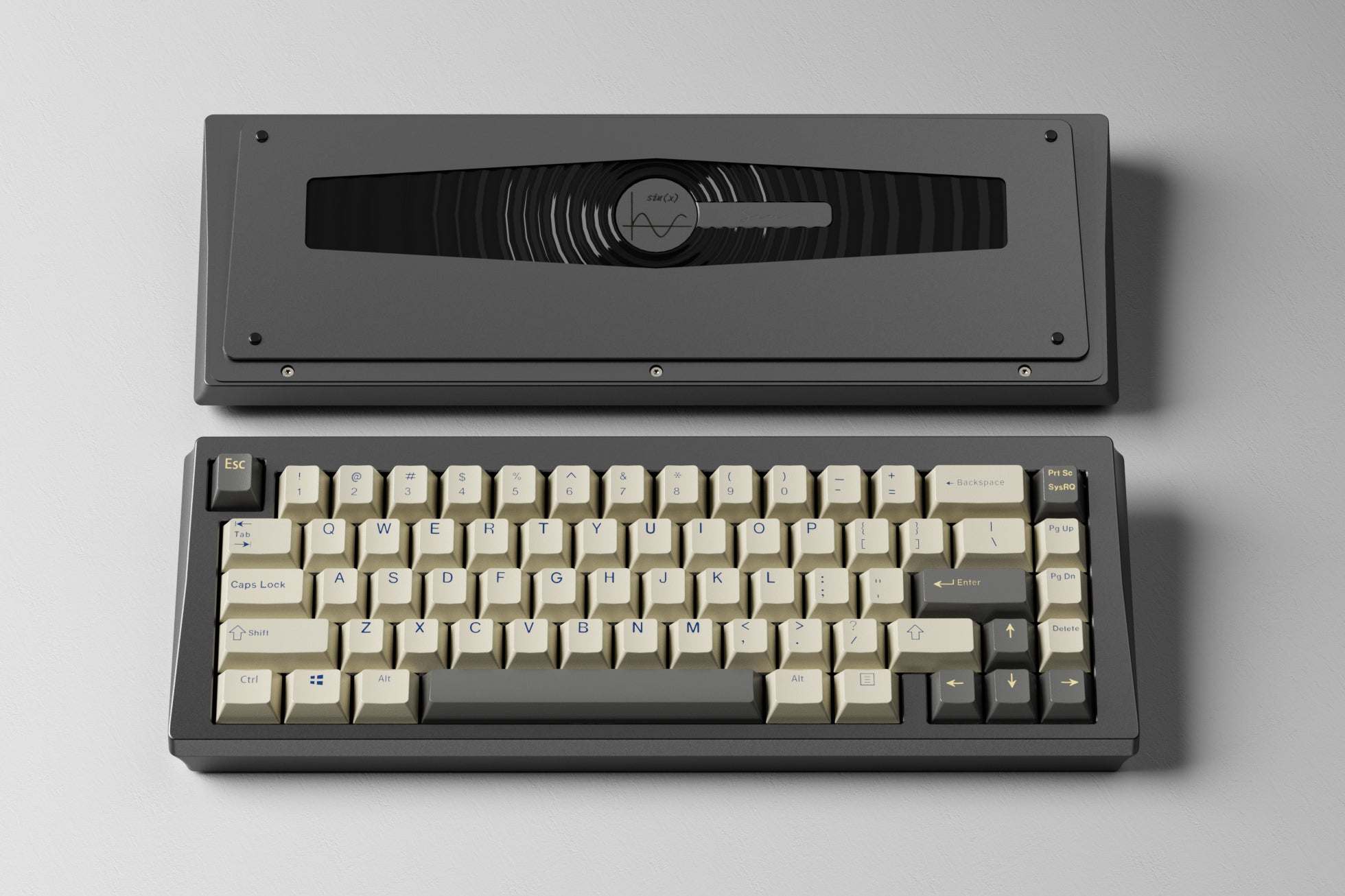

  Black, grey 445C,orange 1655C (6063Alu,anodized)

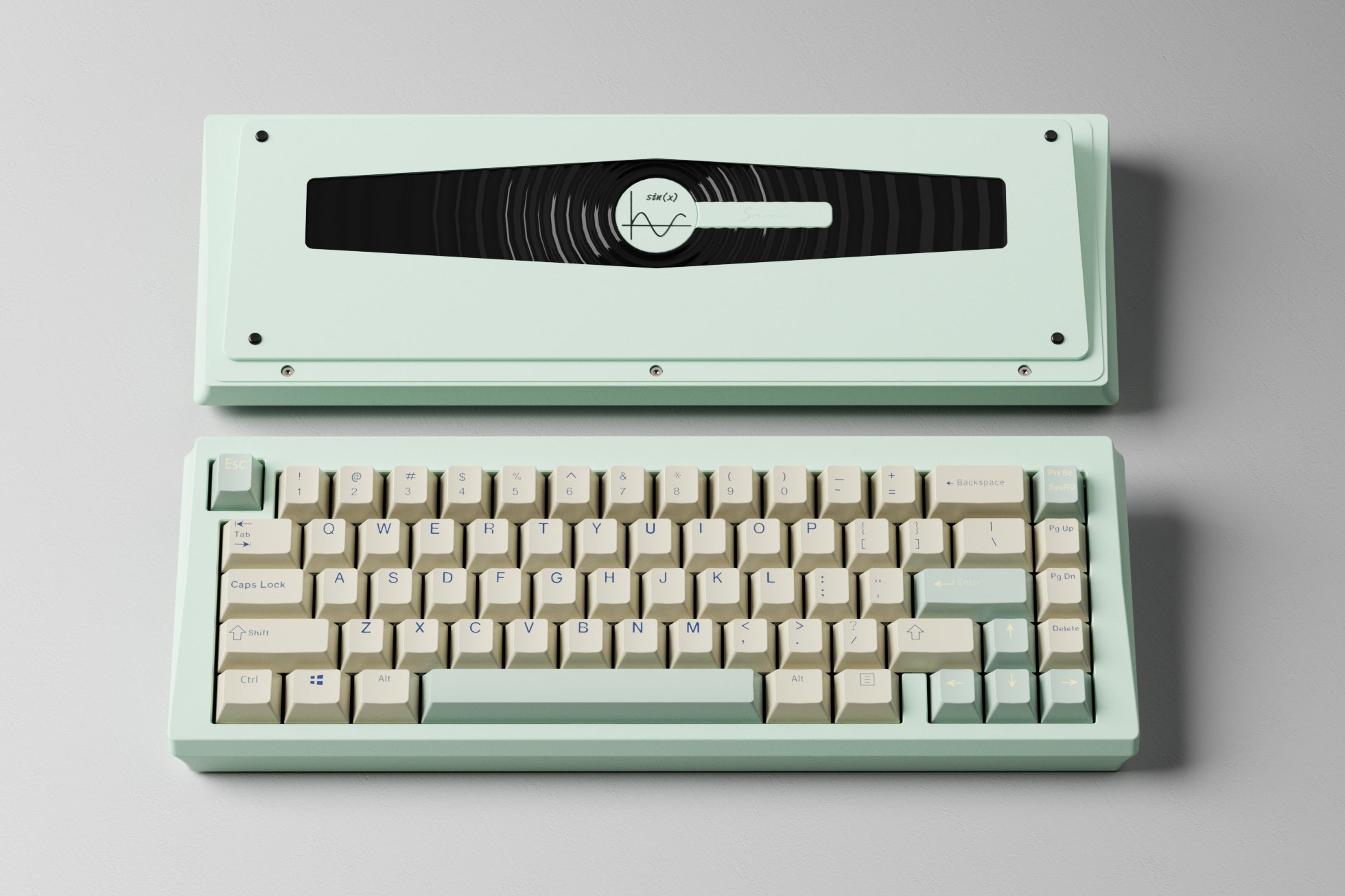

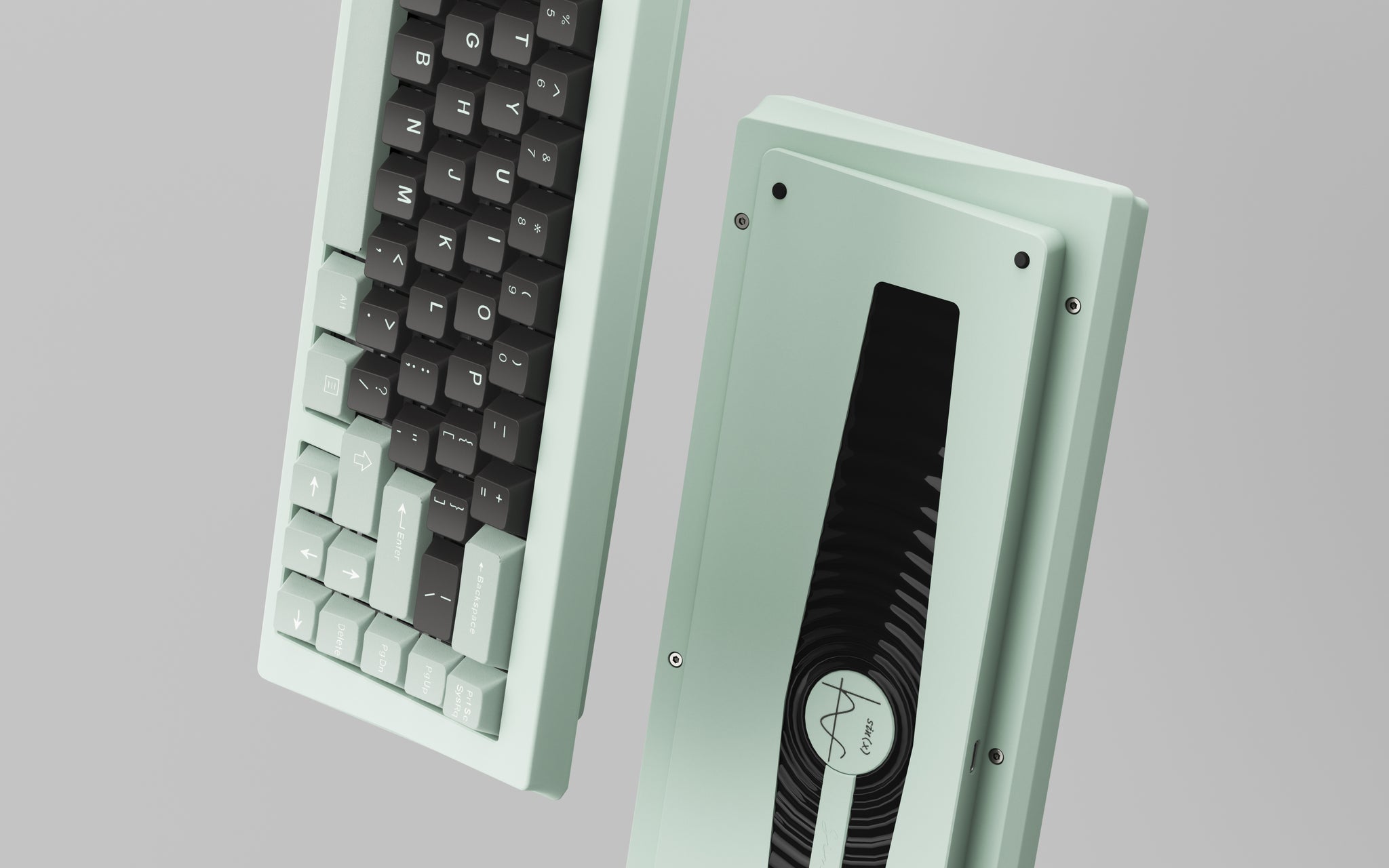

  Off-white,Green(6063Alu, cataphoresis)

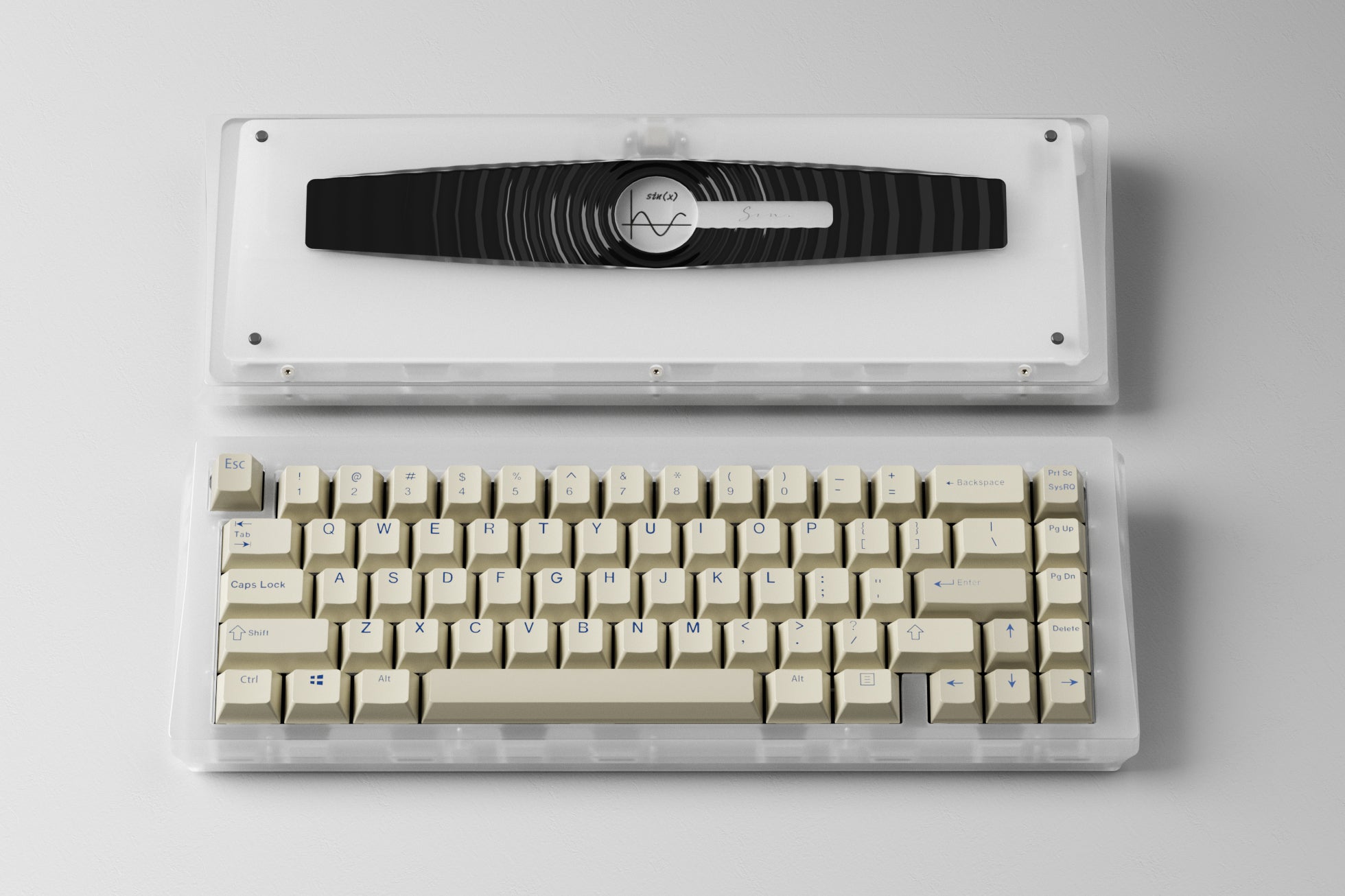

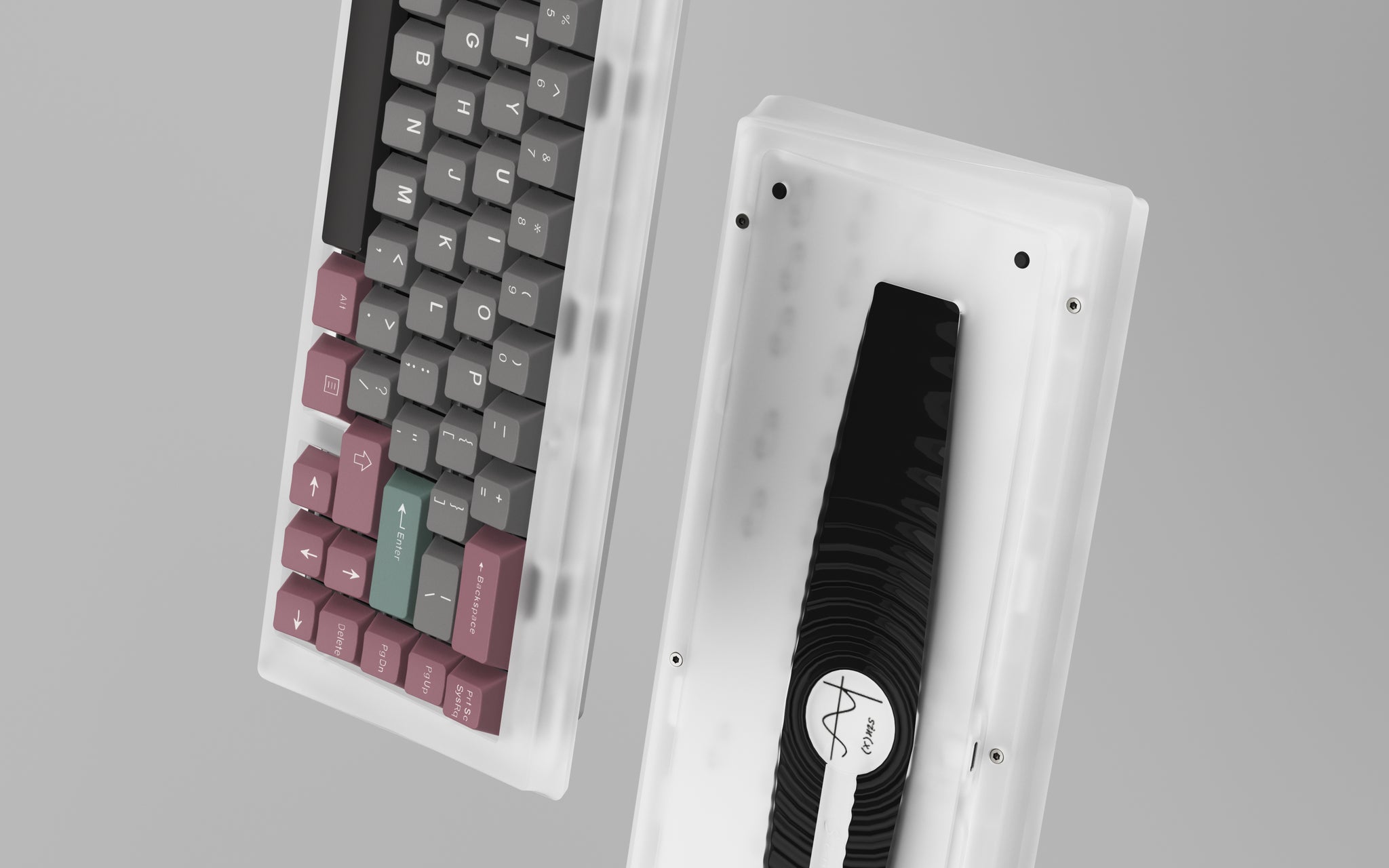

  Semitransparent(composite)
• Plate: 1.5mm PC and alu plate both provide
• SIN65 Bluetooth PCB polling rate: 125hz
• SIN65 Wired Polling Rate: 1000hz
• Wired pcb support VIAL

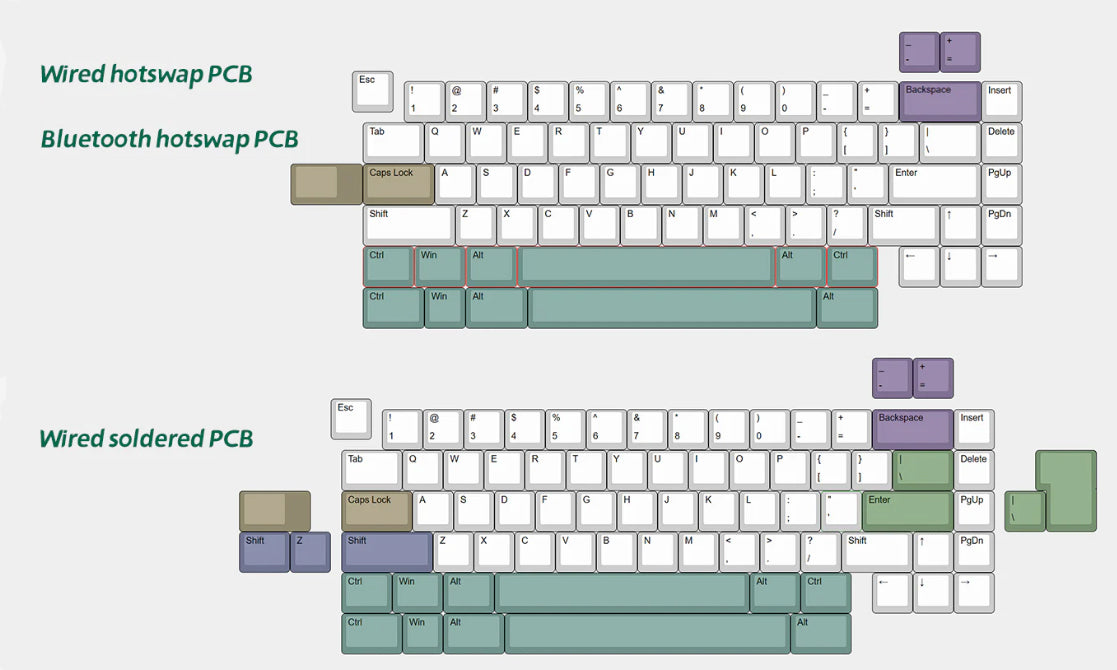

PCB Layout:

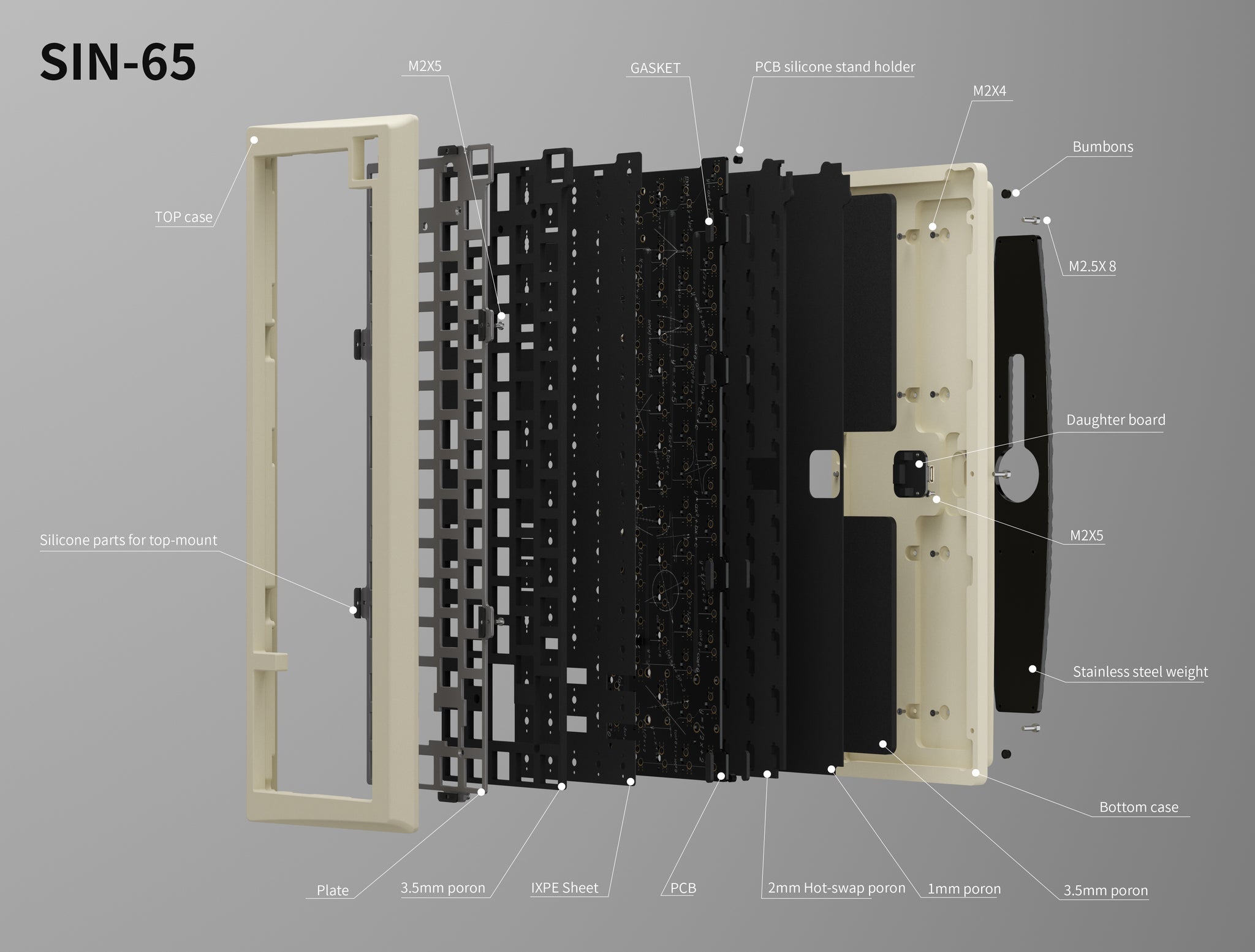

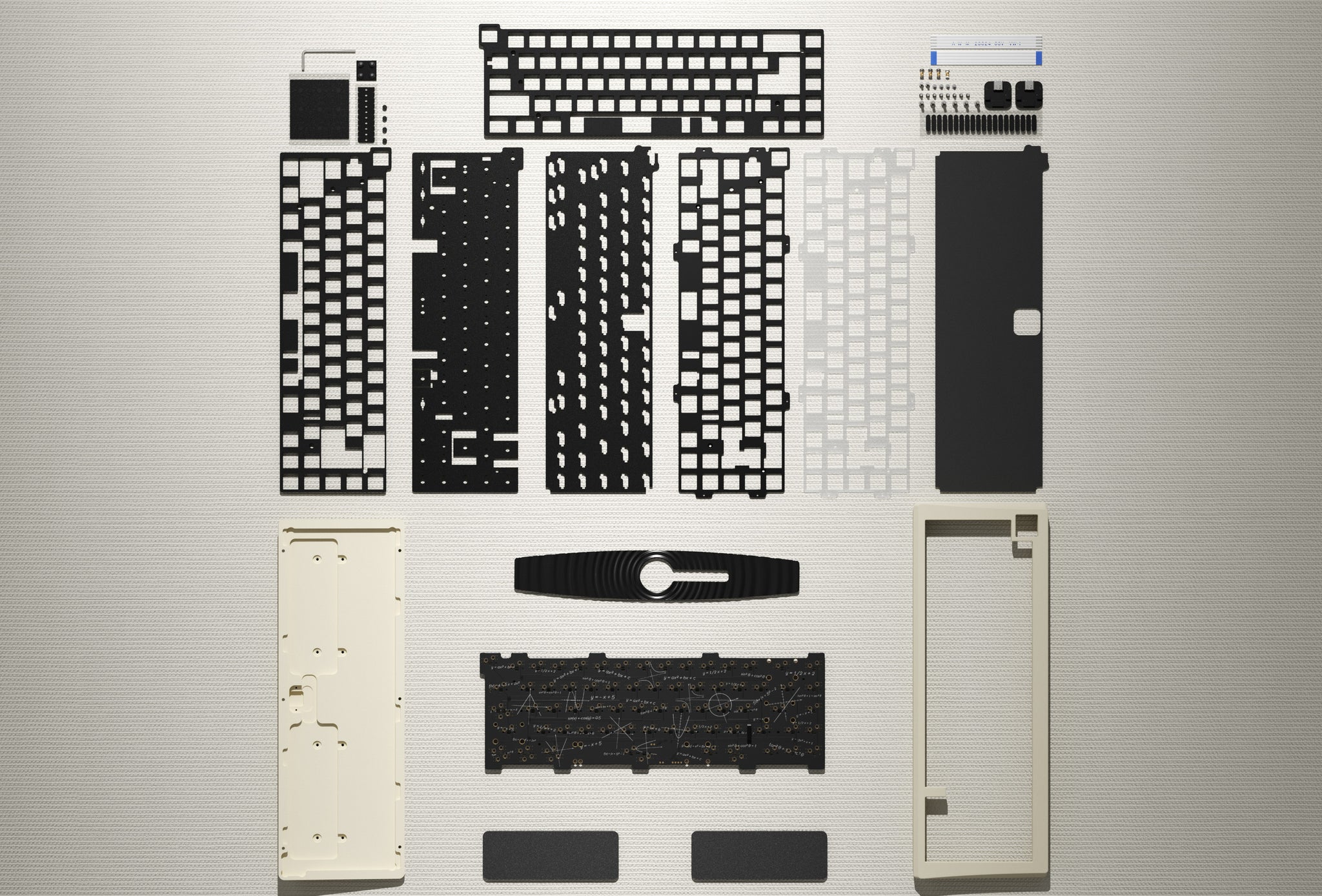

Structural View:

Includes:

• TOP Case
• Bottom Case
• PCB
• PC plate
• alu plate

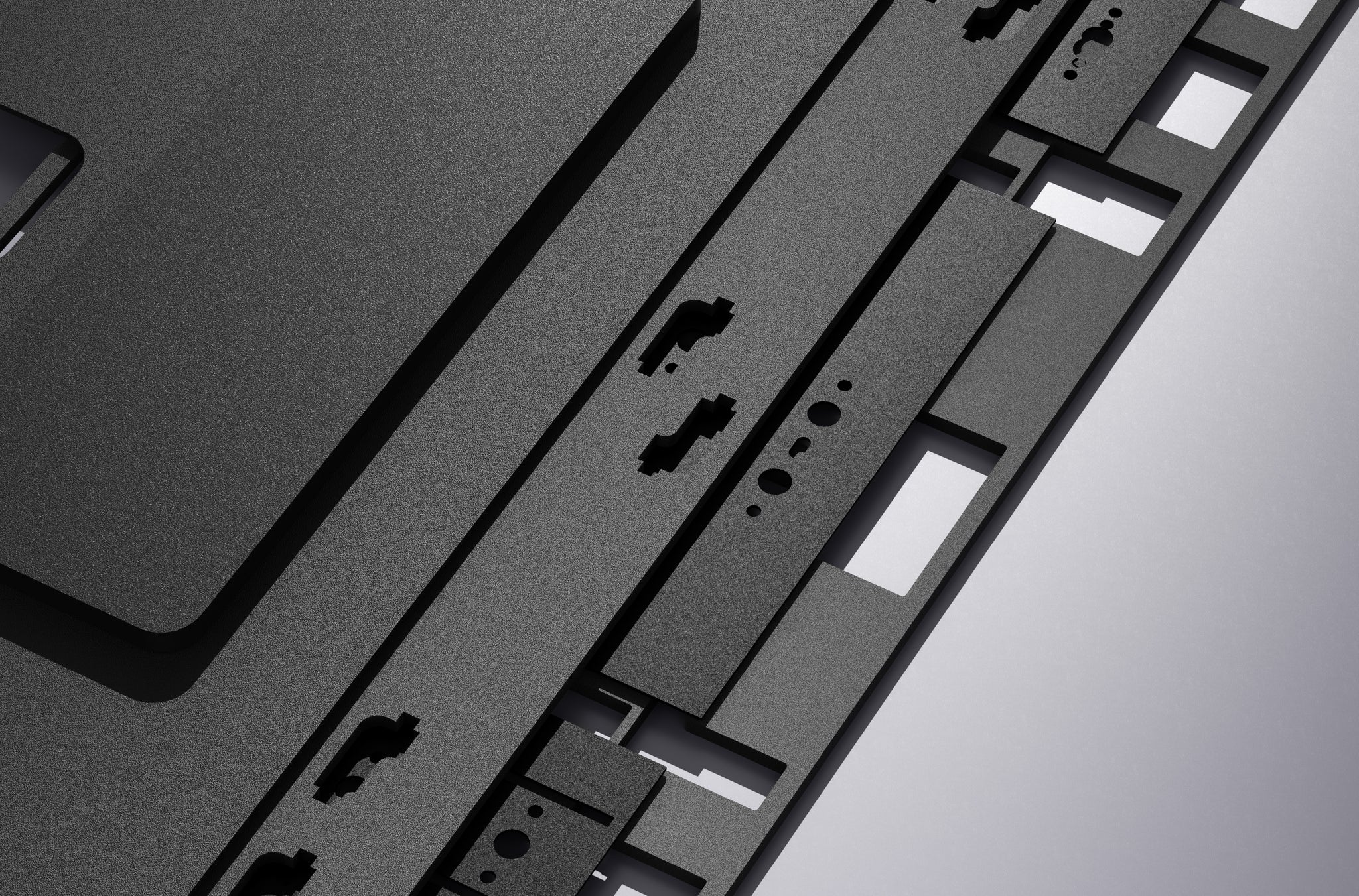

• Foam Kit(1mm Poron+2mm hotswap
• IXPE sheet+3.5mm poron)
• Weight
• accessories
