Sonic170 Keyboard [GB]

Sonic170 Keyboard [GB]

¥56,405 JPY
¥56,405 JPY
Sale Sold out
Tax included. Shipping calculated at checkout.

Out of stock

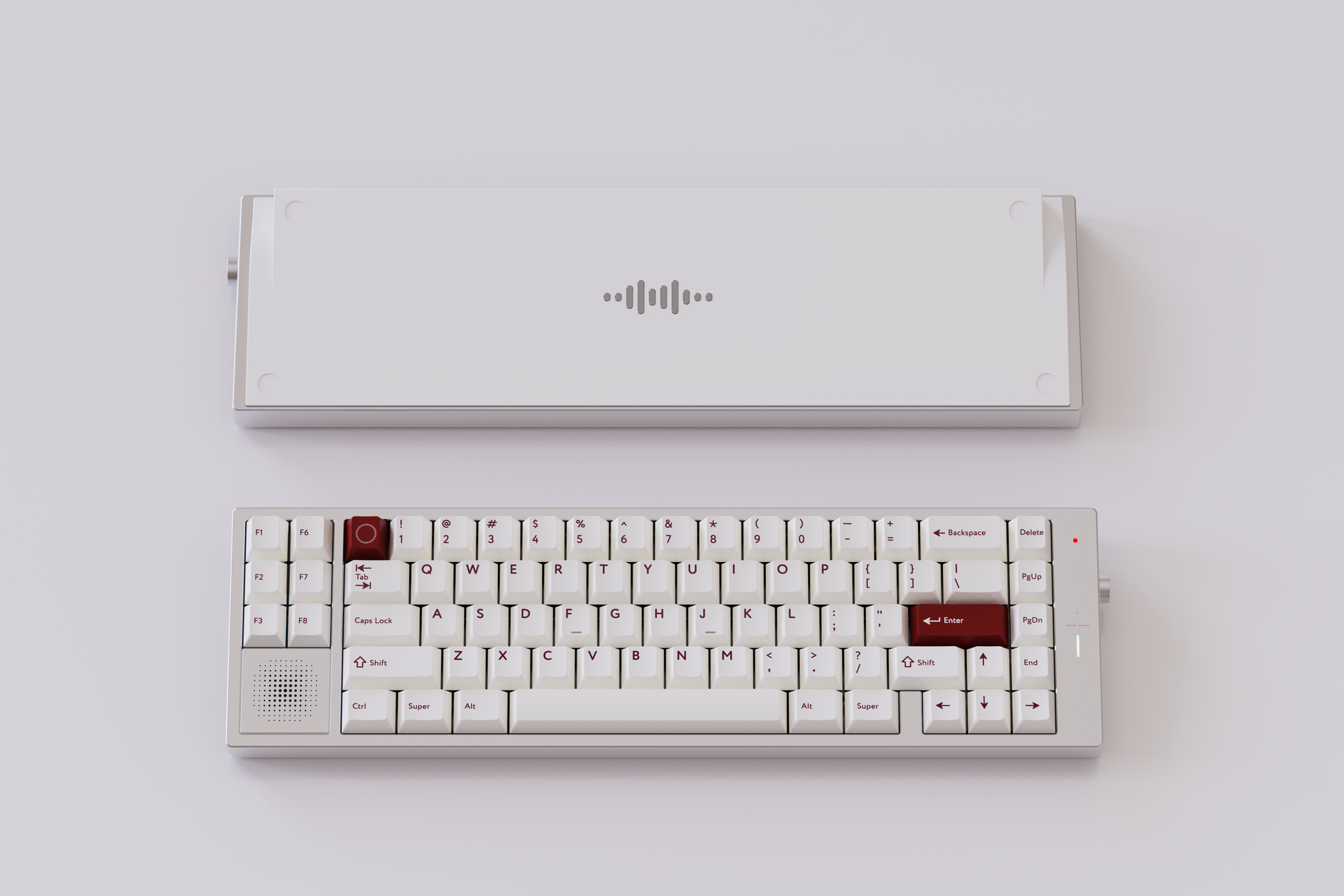

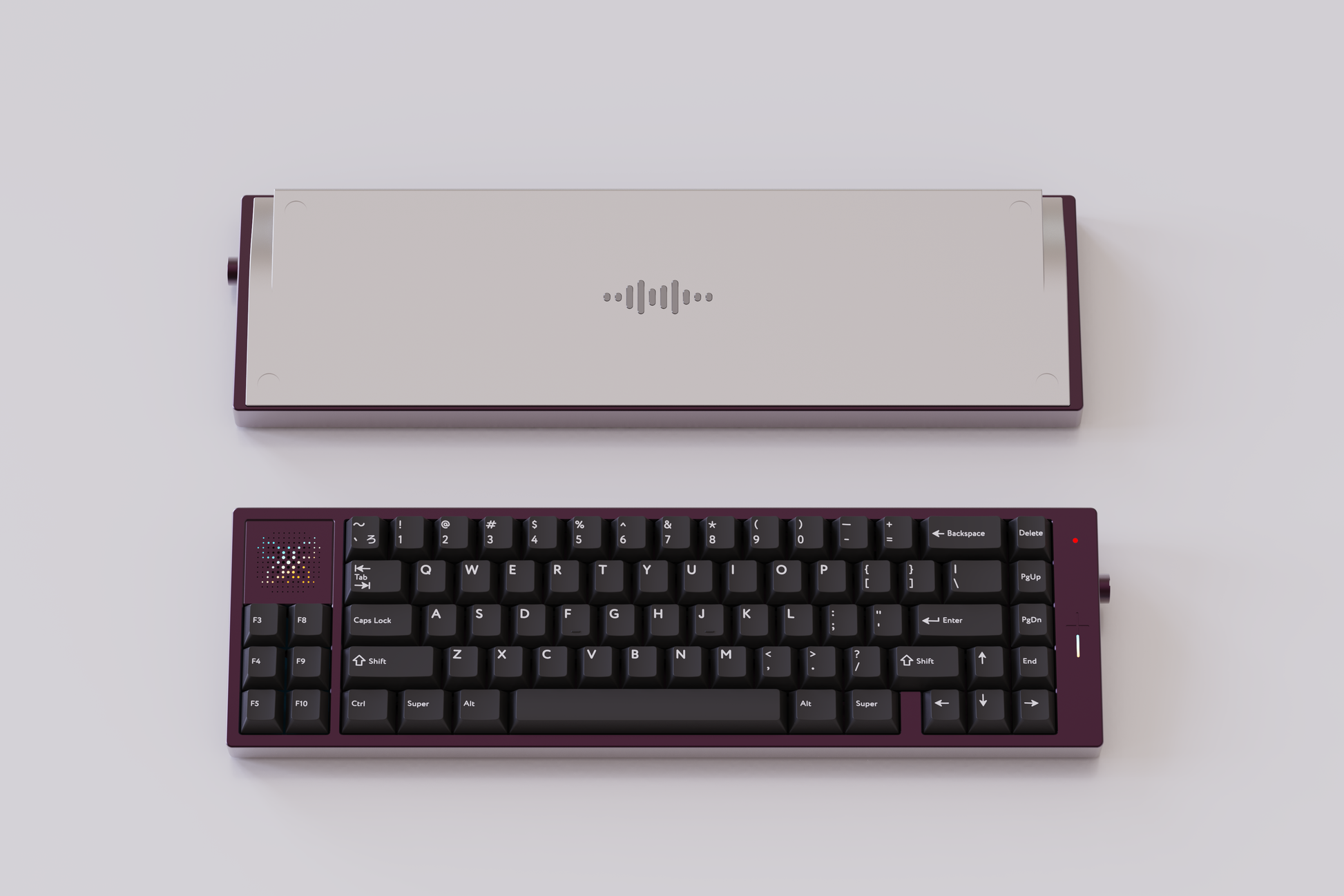

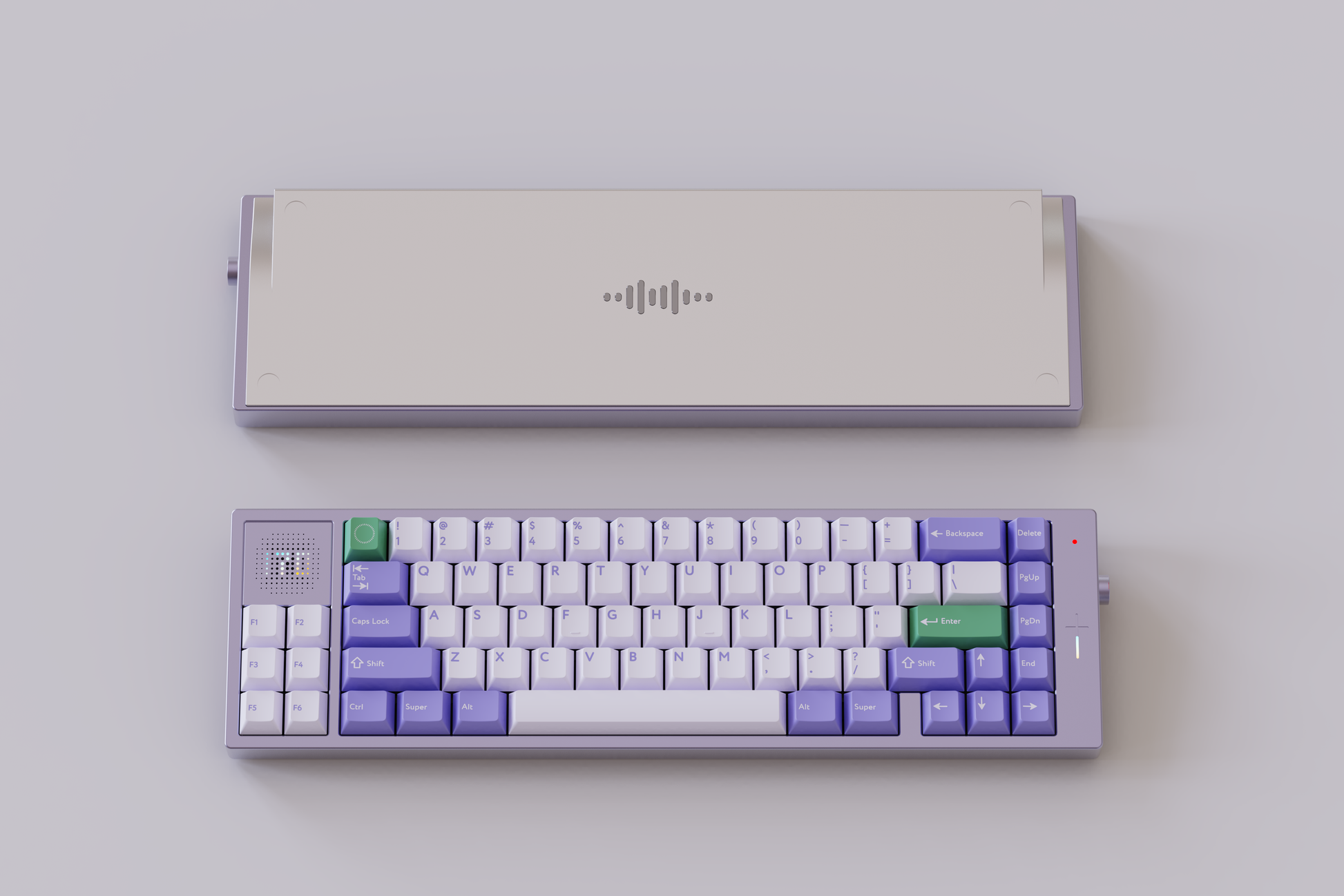

Color

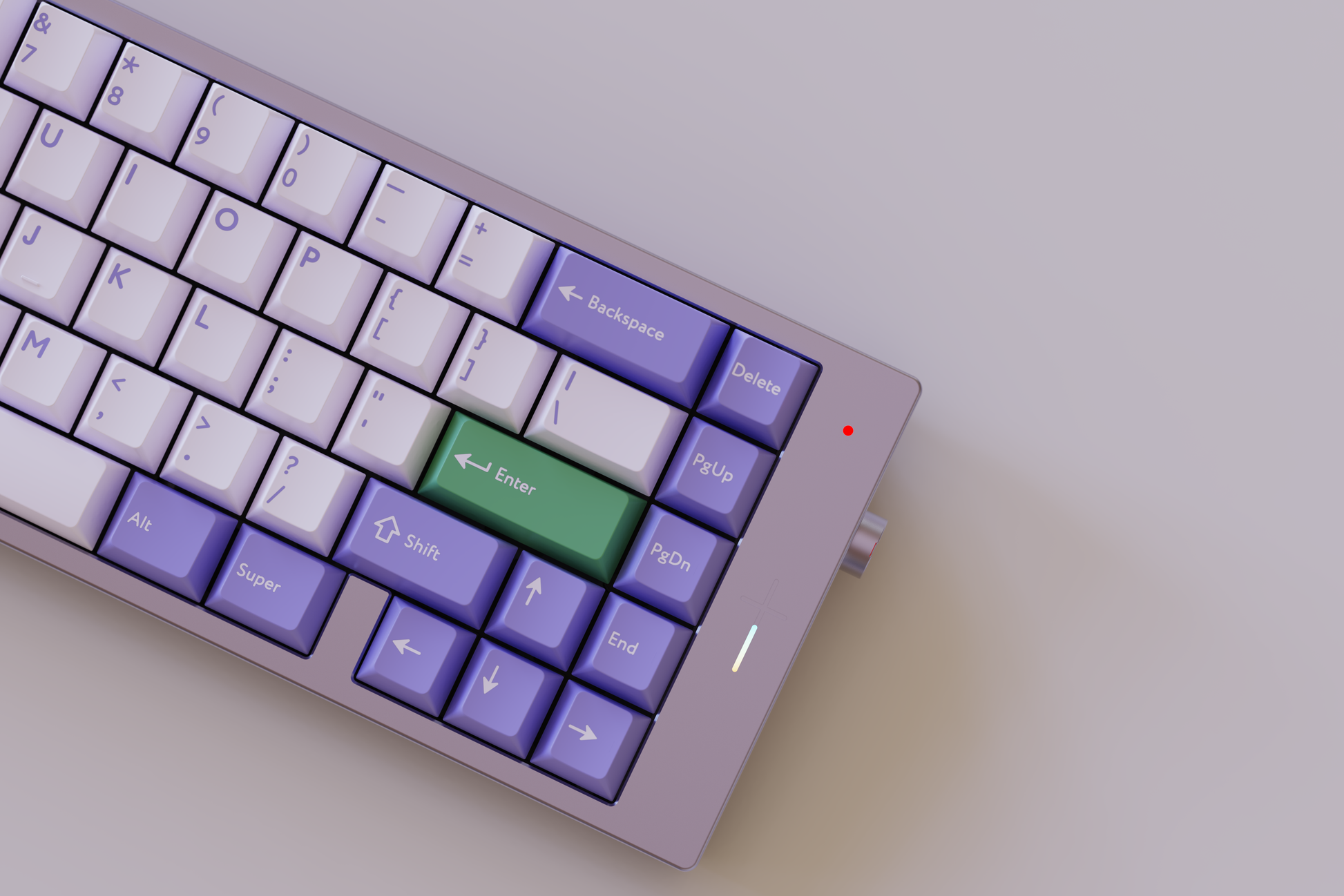

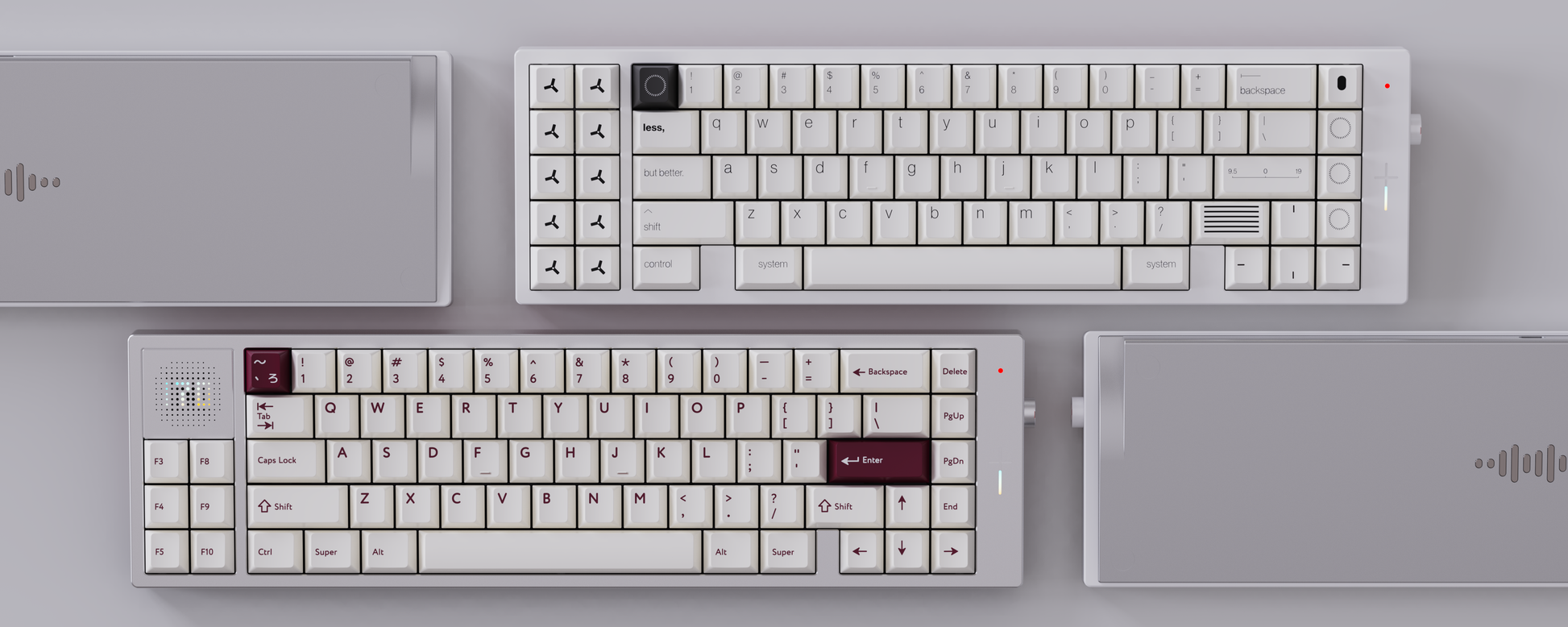

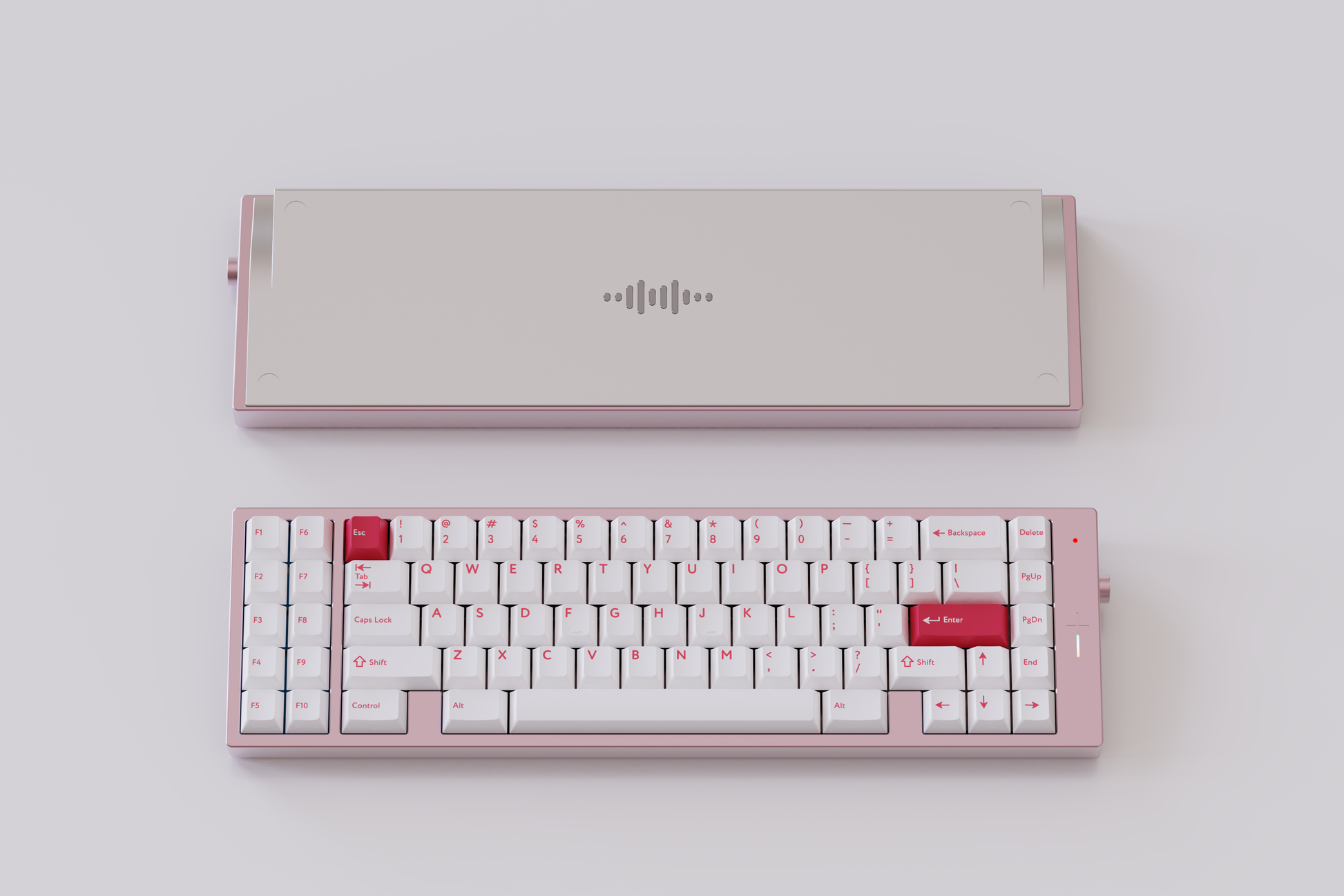

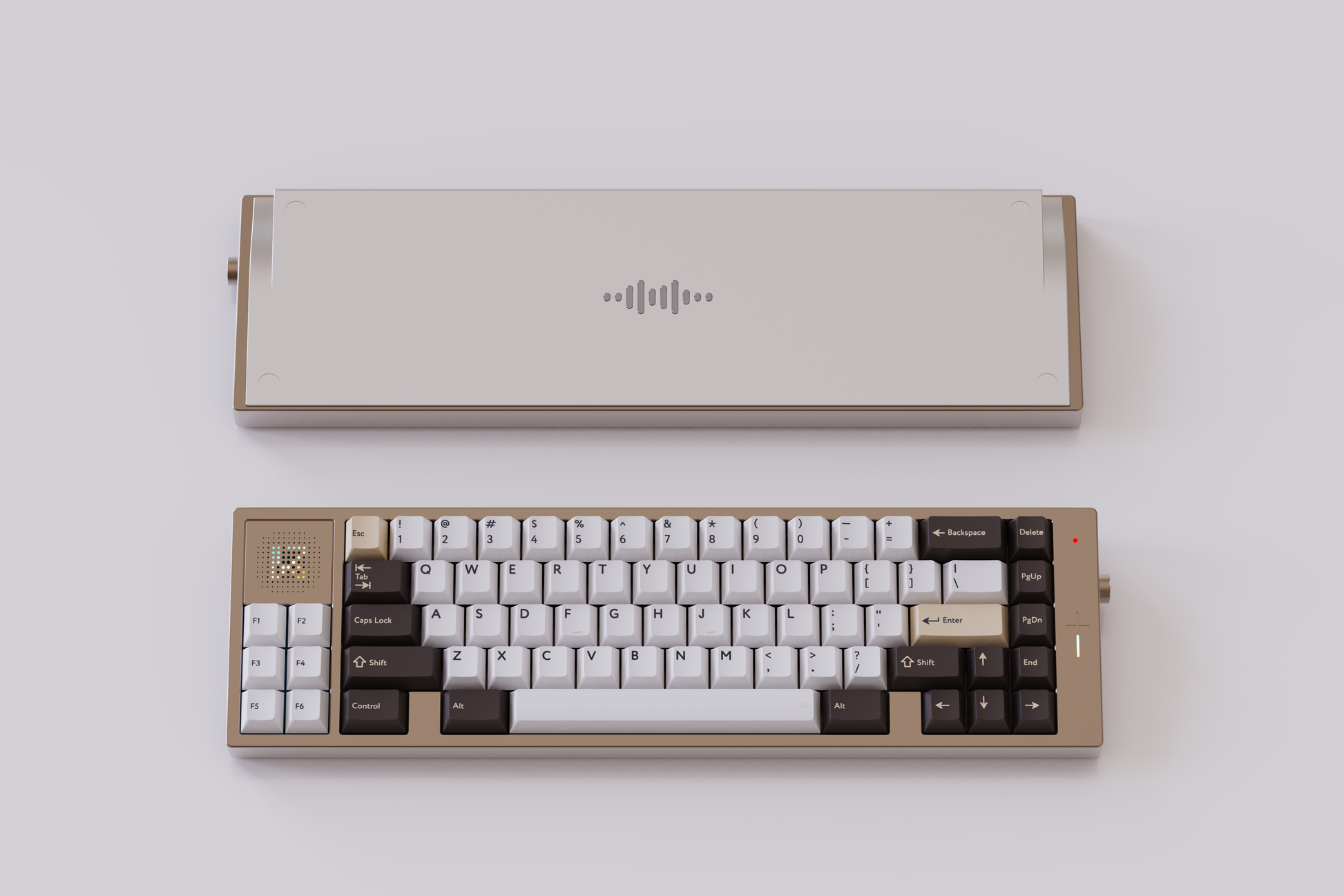

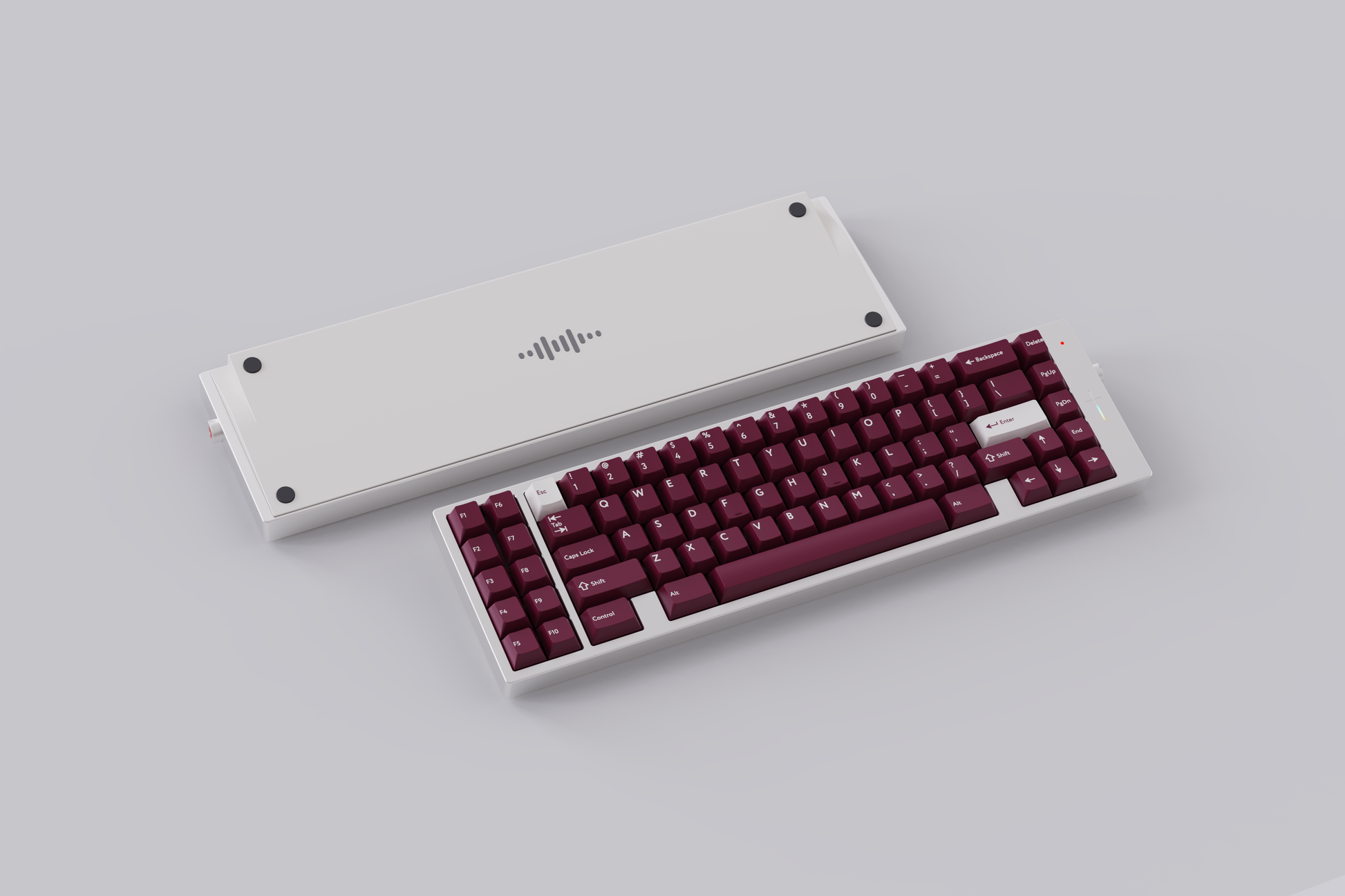

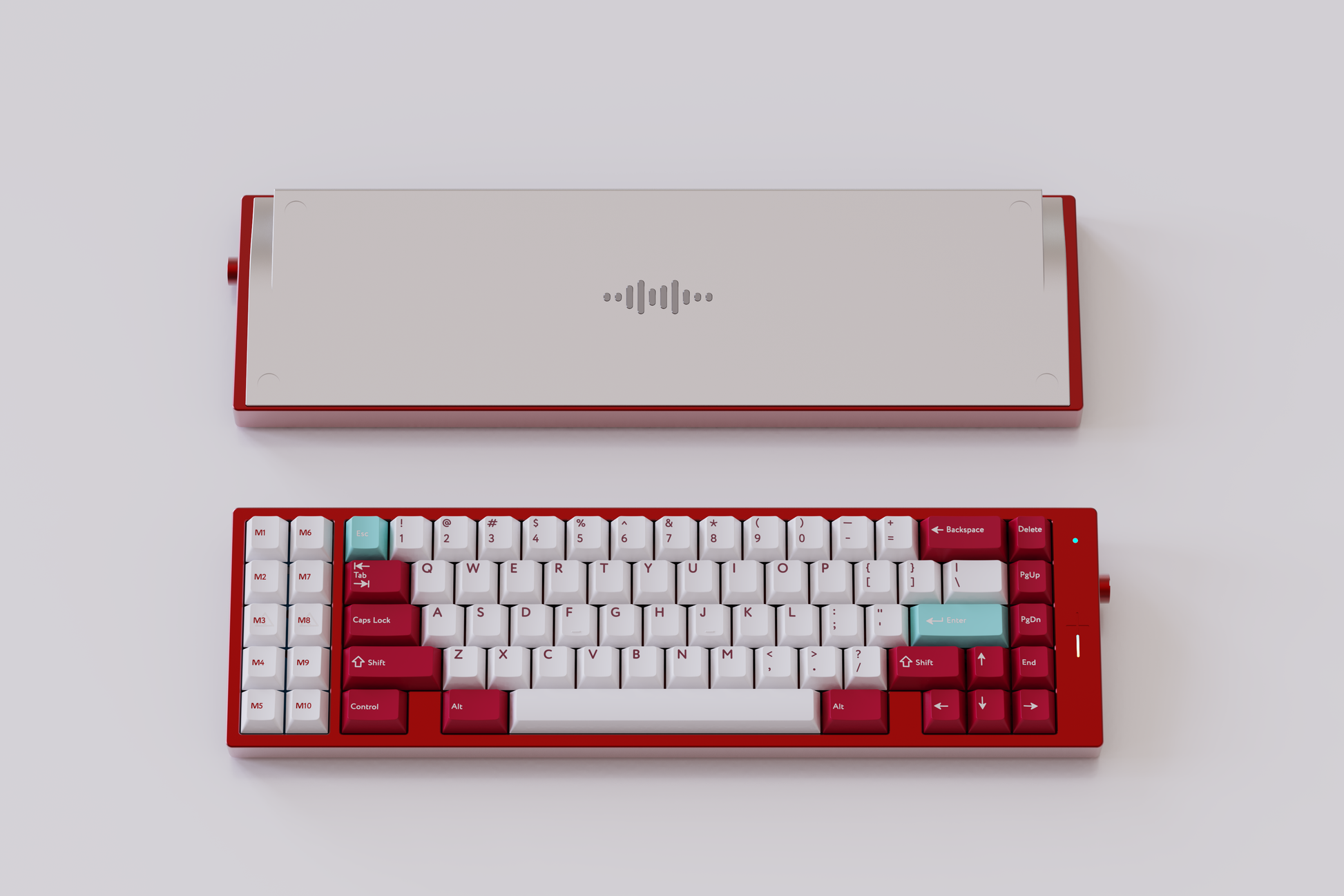

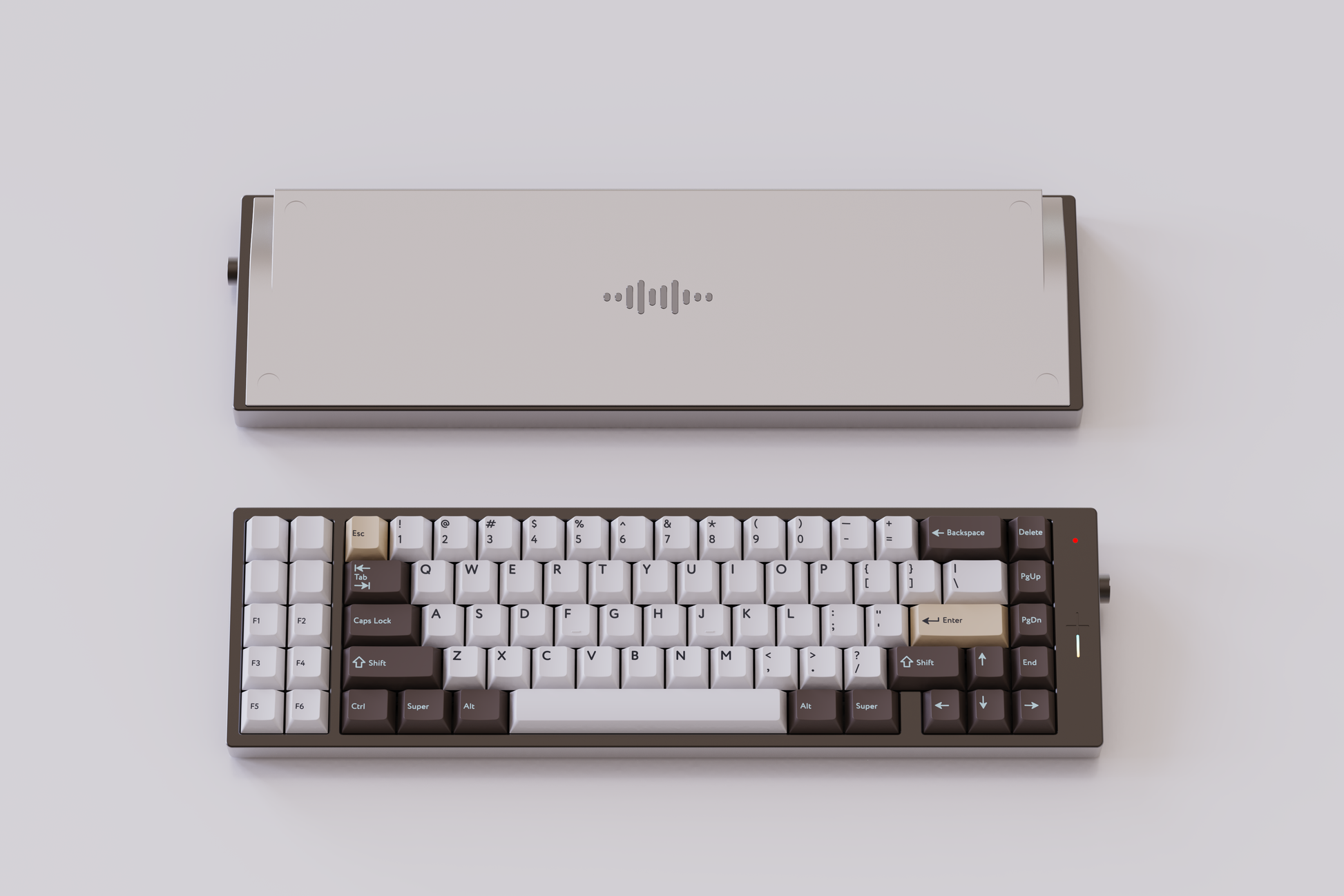

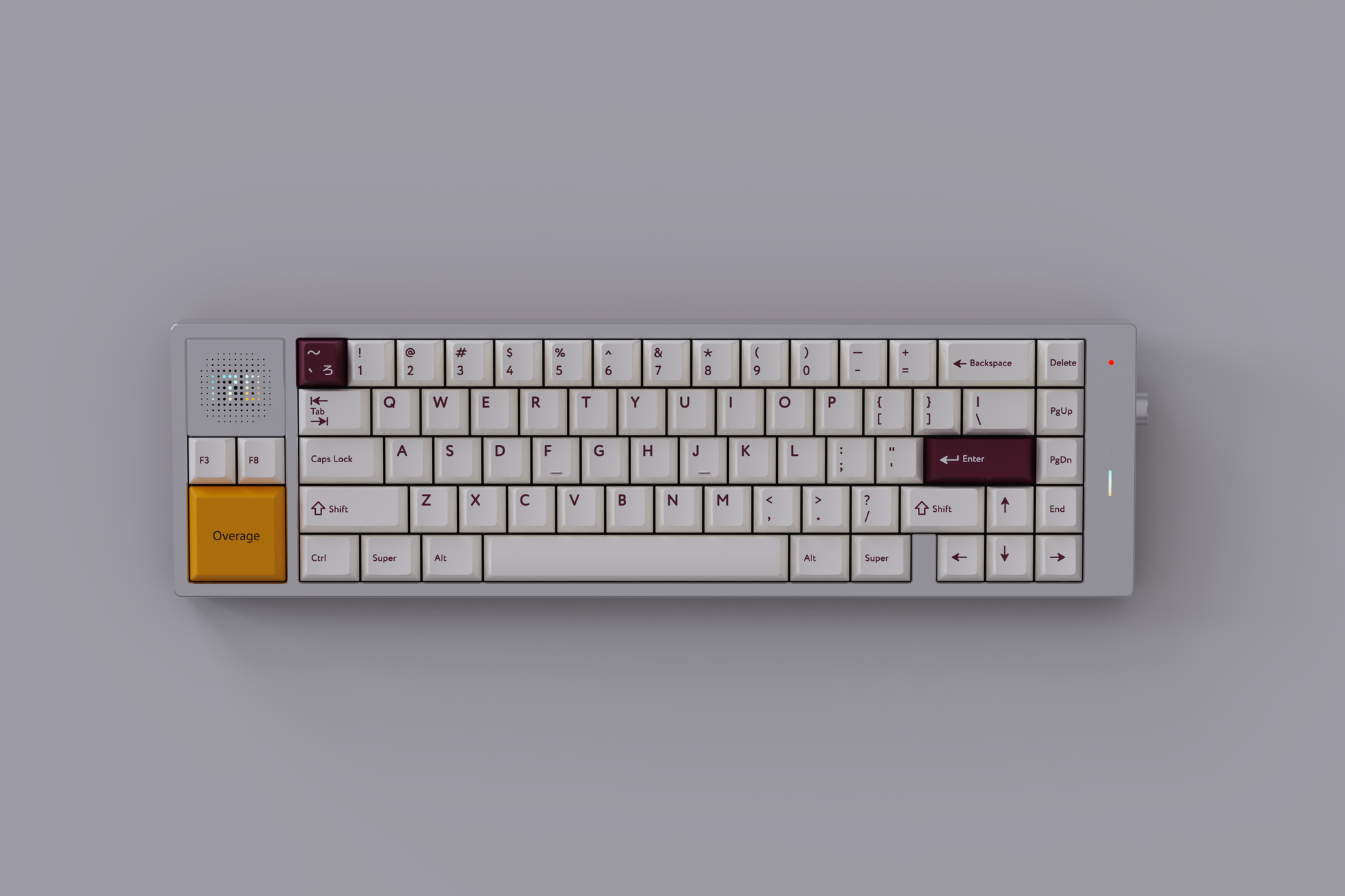

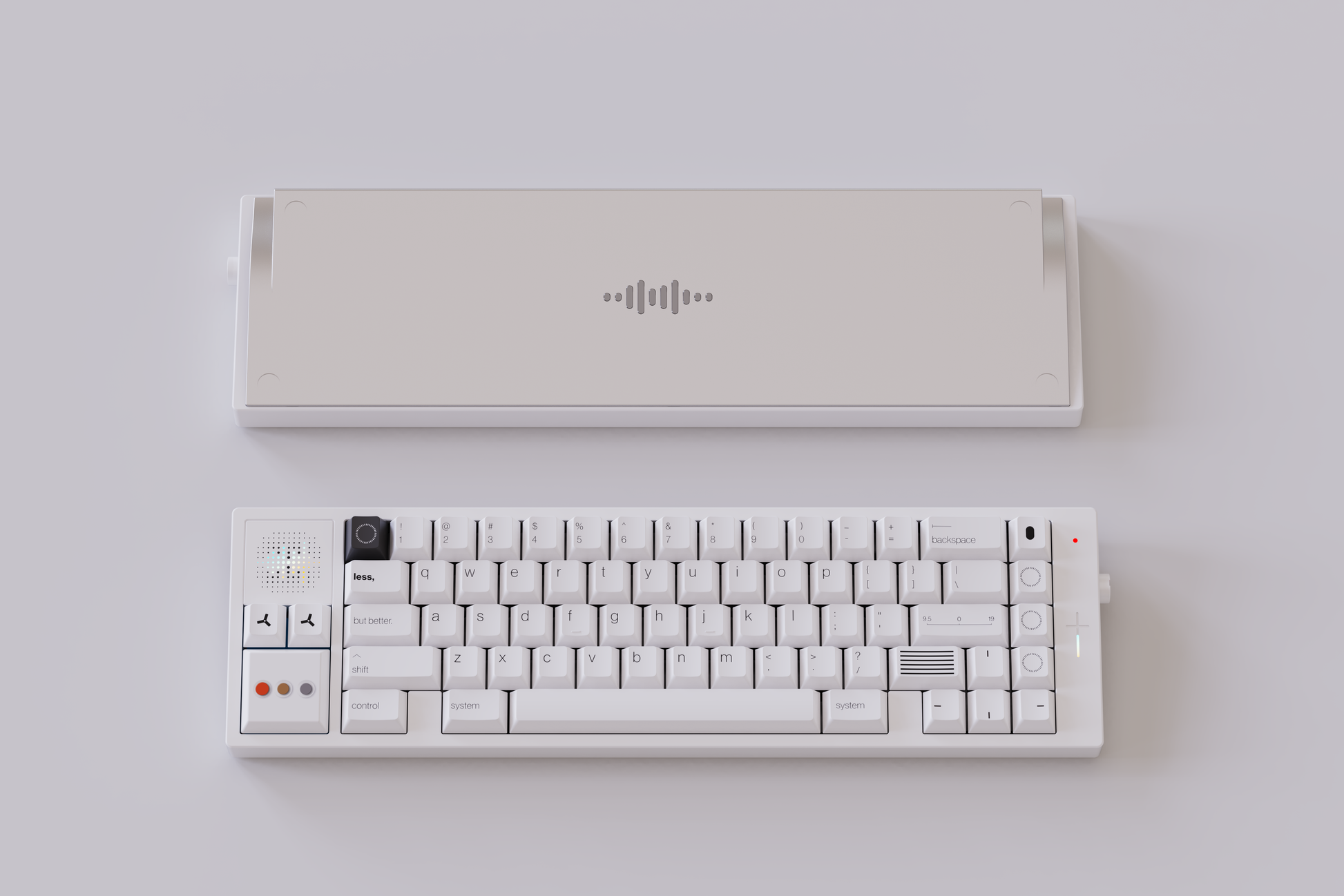

Sonic170 is inspired by the TE OP-1 synthesizer. It's a 65% with a knob and a customizable LED macro module
料100サイズ
Group-buy: July 15th 2023 - July 30th 2023
Delivery: Q1 2024

Specifications:

  • Layout: 65% + Macro
  • Top, Mid & Bottom: 6063 Aluminum
  • Weight: Stainless steel
  • Plate: Alu, PC, FR4
  • PCB: FR4
  • Typing Angle: 7°
  • Front Height: 18.7mm
  • Size: 373.6 x 106.4 x 31.5mm
  • PCB: Hotswap or Solder with QMK, Via, Vial support

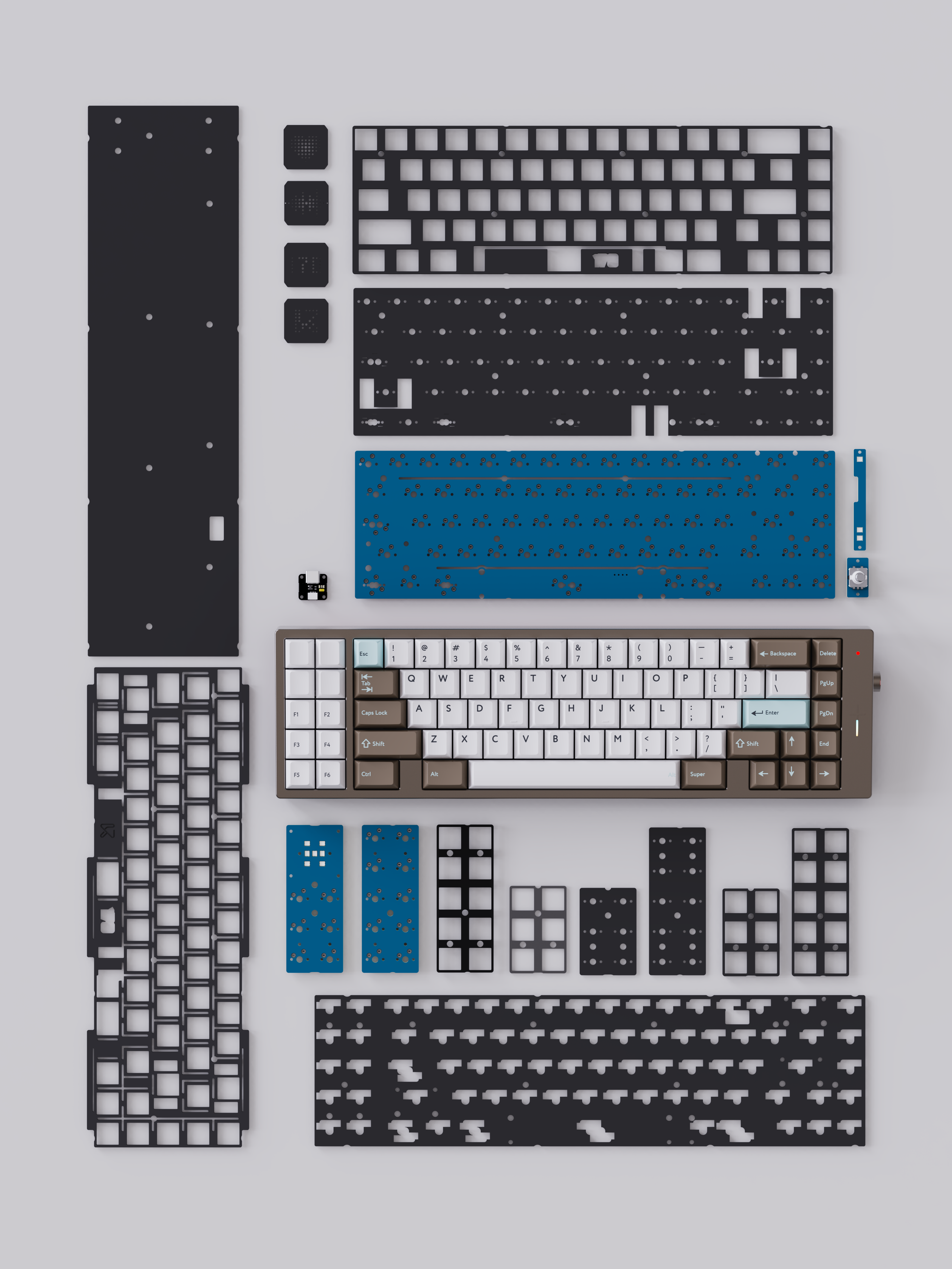

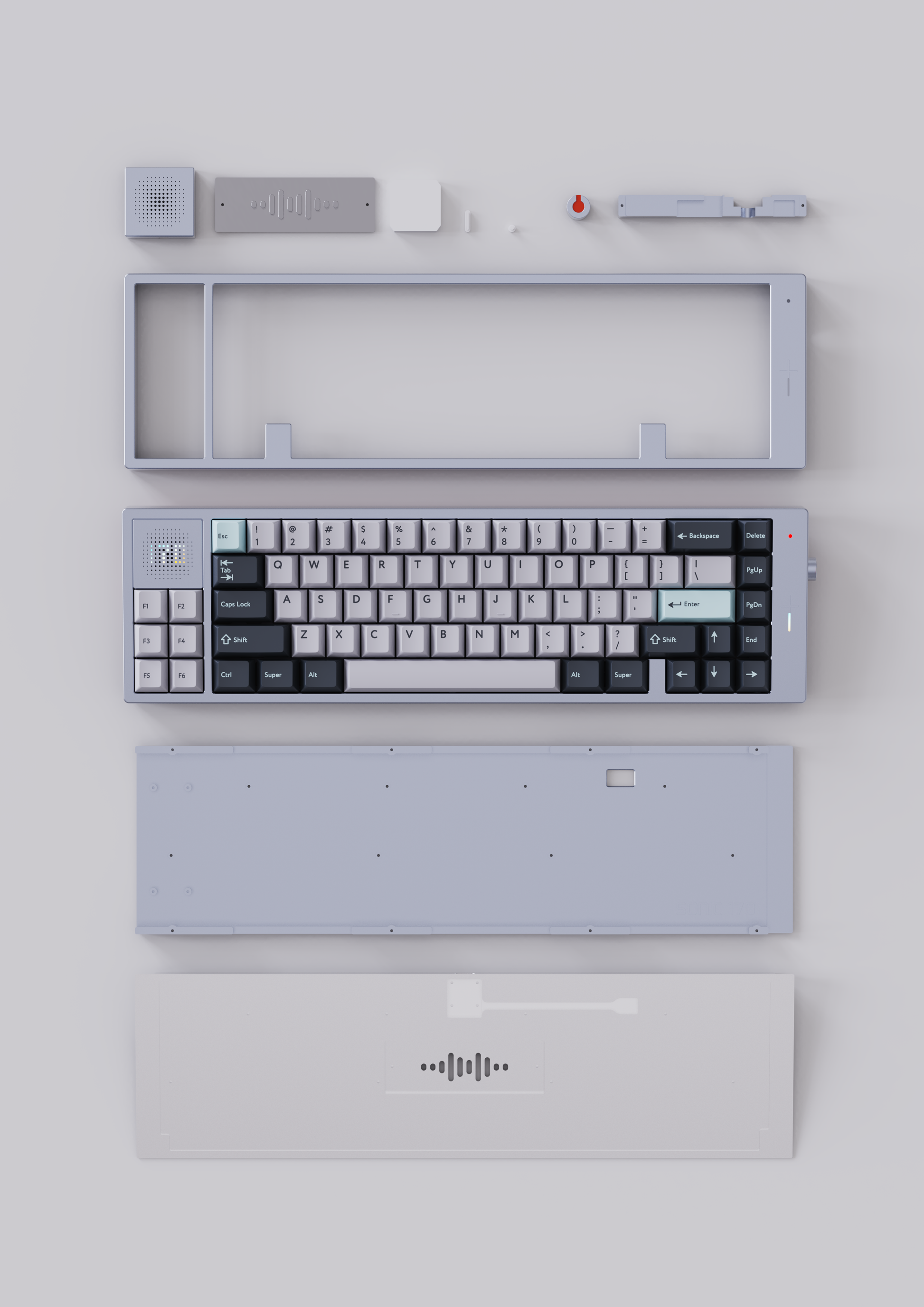

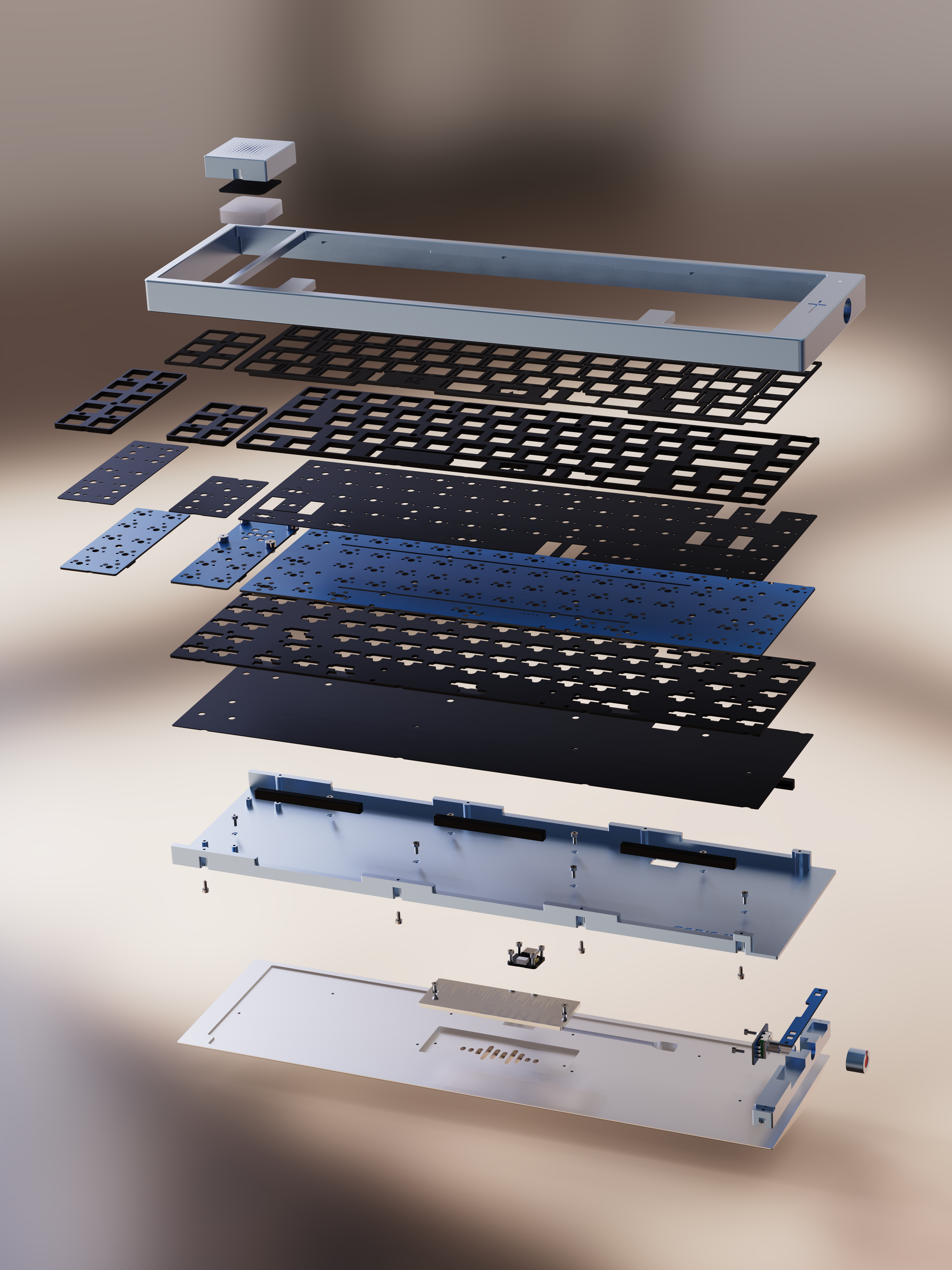

Kit contents:

  • Aluminum top case
  • Aluminum middle case
  • Aluminum bottom case
  • Stainless Steel weight
  • Plate (Total of plates - 1 main and 2 macro plates)
  • PCB (Total of 3 PCBs - 1 main and 2 macro PCBs)
  • Gasket strips
  • Daughterboard and JST Cable
  • Foam pack
  • Screws

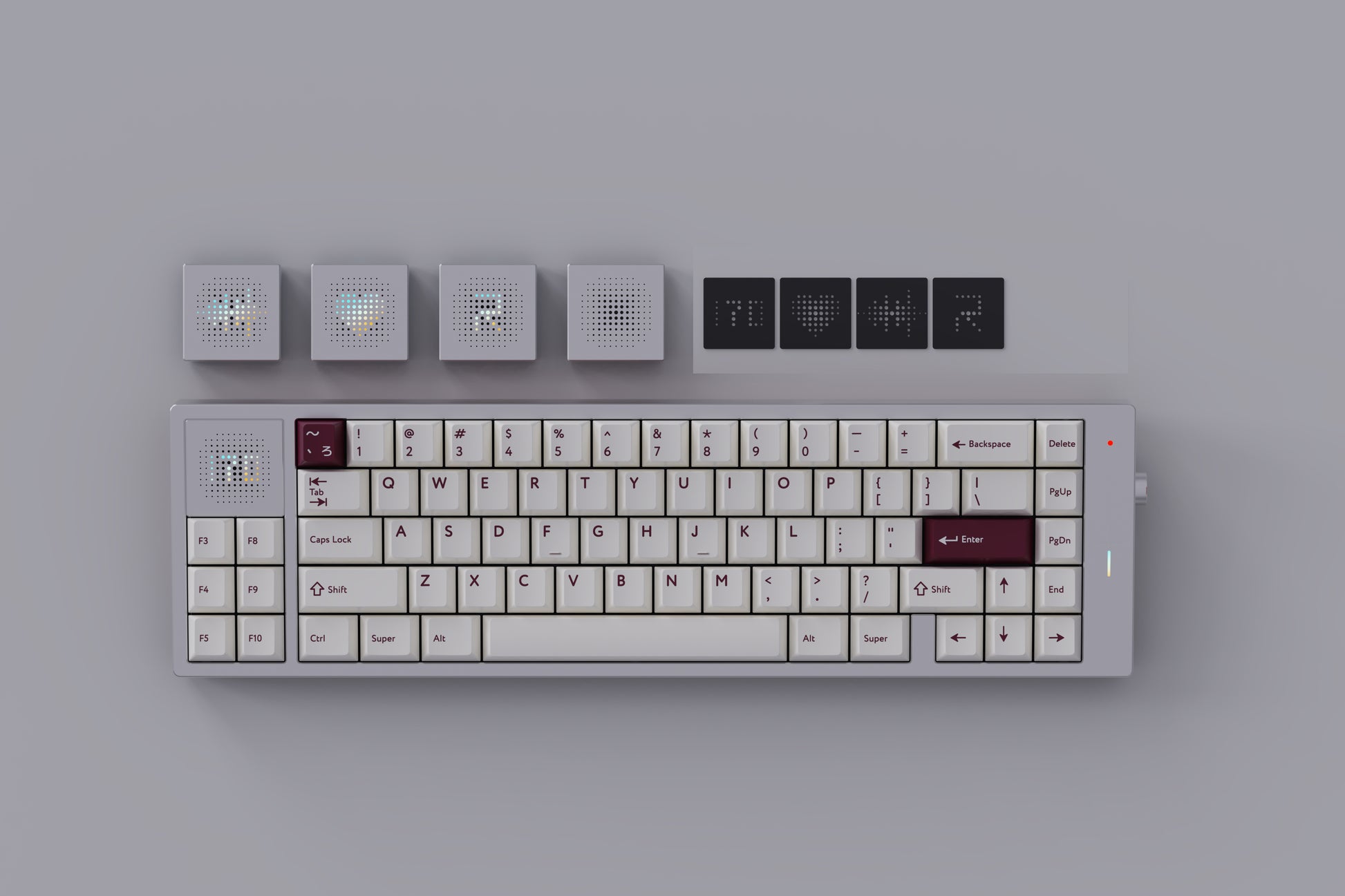

  • 10x 4u Light module cover

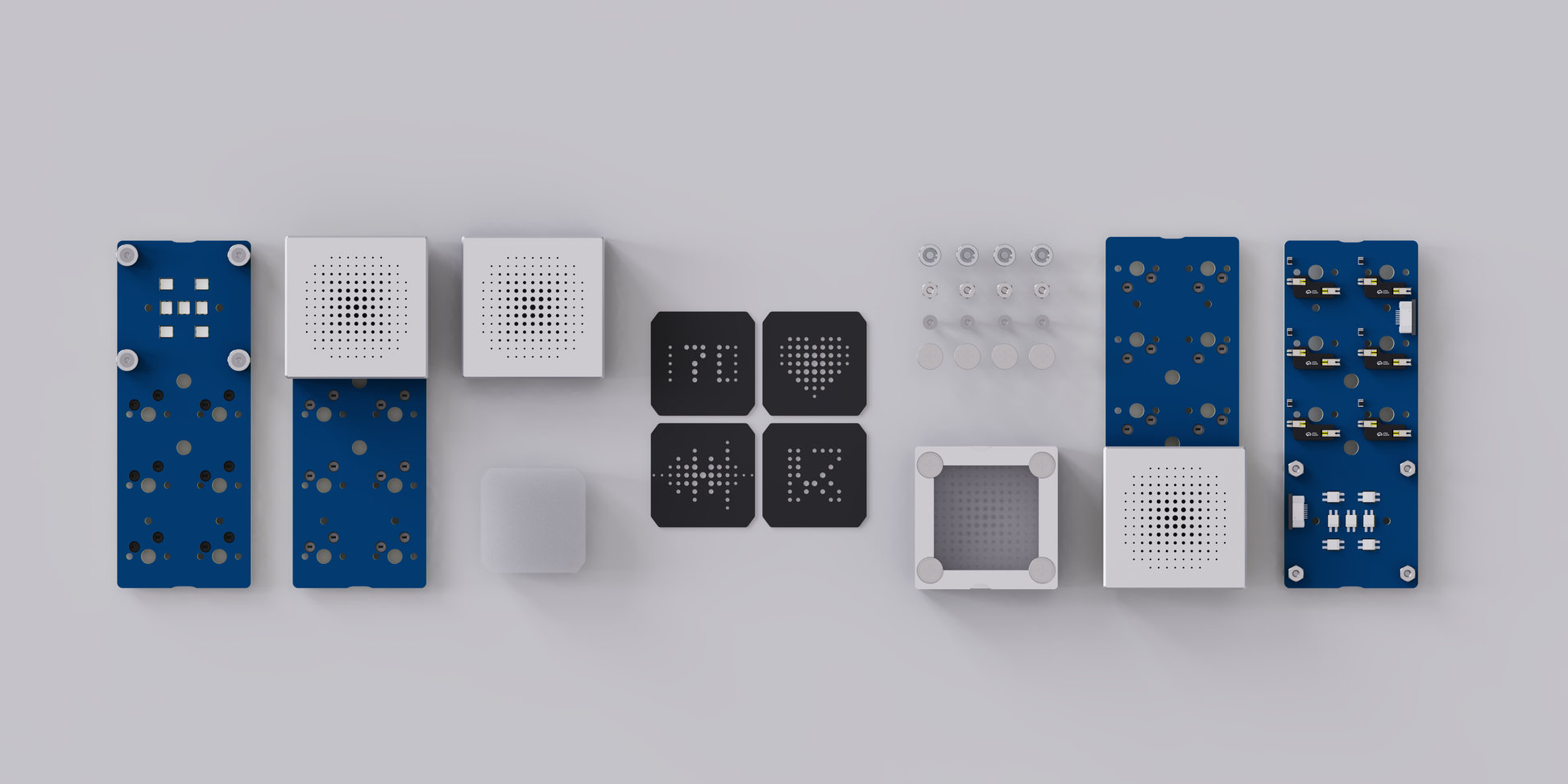

  • Magnetic light module block

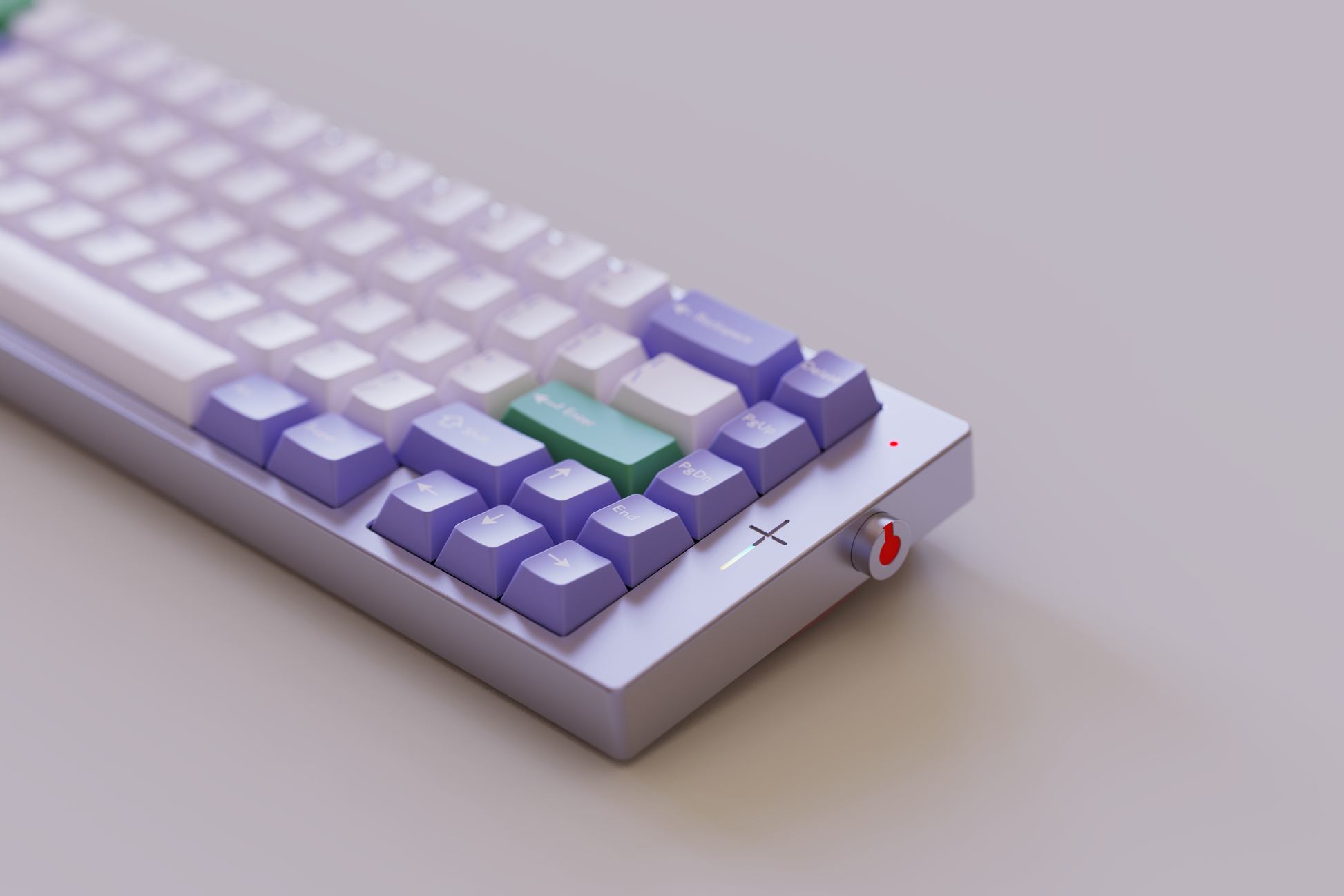

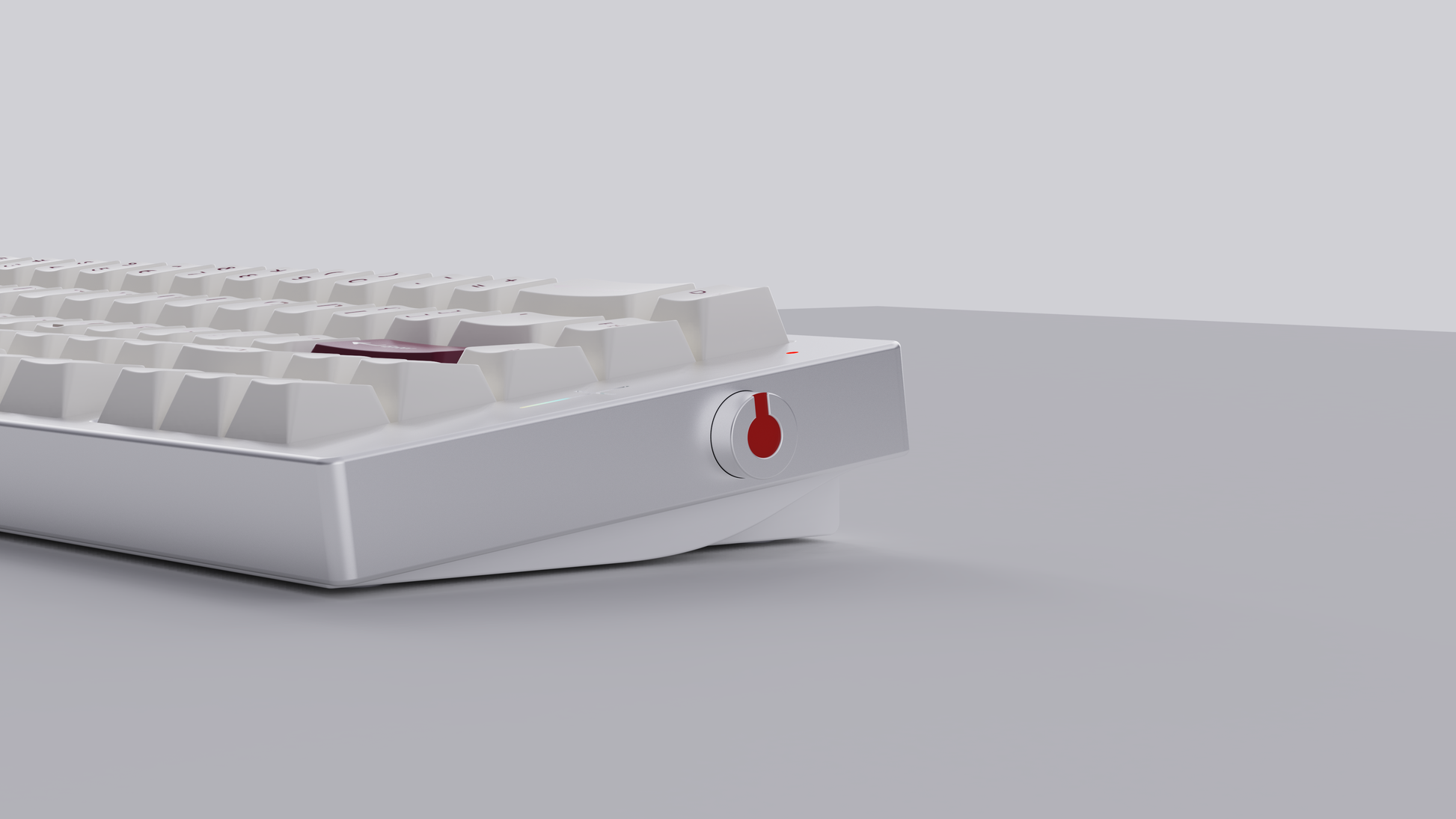

  • Rotary module and knob

Layout Hotswap:

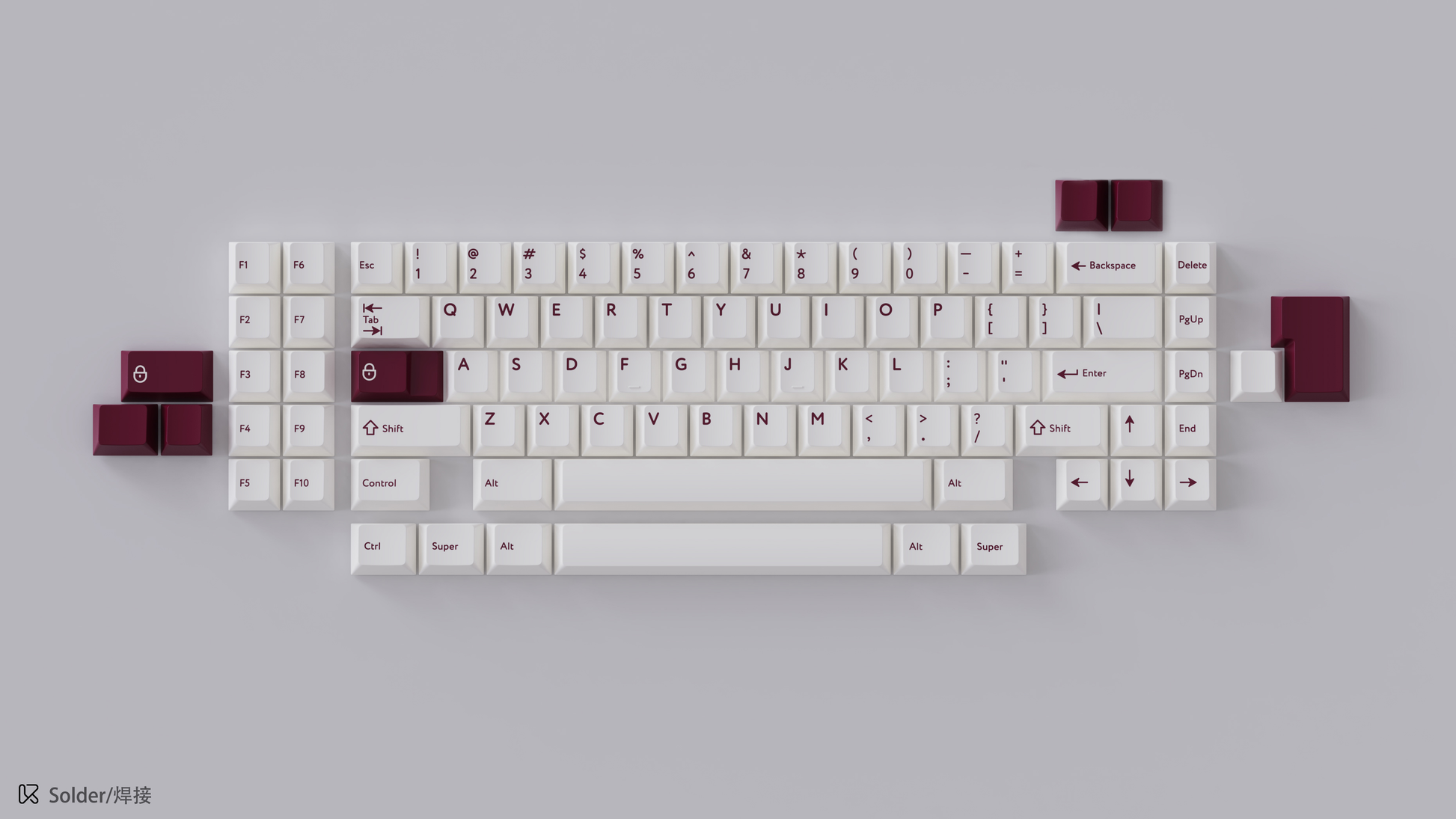

Layout Solder:

Note:
PCBs will include both the main PCB and the 2 macro sections Hotswap PCB (total 3 PCB included)
Plates will include both the main plate and the 2 macro section plates (total 3 plates included)
The crucifix design has been replaced with an RGB strip due to religious concerns. However, the actual prototype still has the crucifix. Please refer to the new renders for a representation of the final product. The prototype photos are included to represent the final product quality only.
