Basekeys

Navi60 [Extras]

Navi60 [Extras]

¥36,000 JPY
¥36,000 JPY
Sale Sold out
Tax included. Shipping calculated at checkout.

Out of stock

Kit
Kit 1

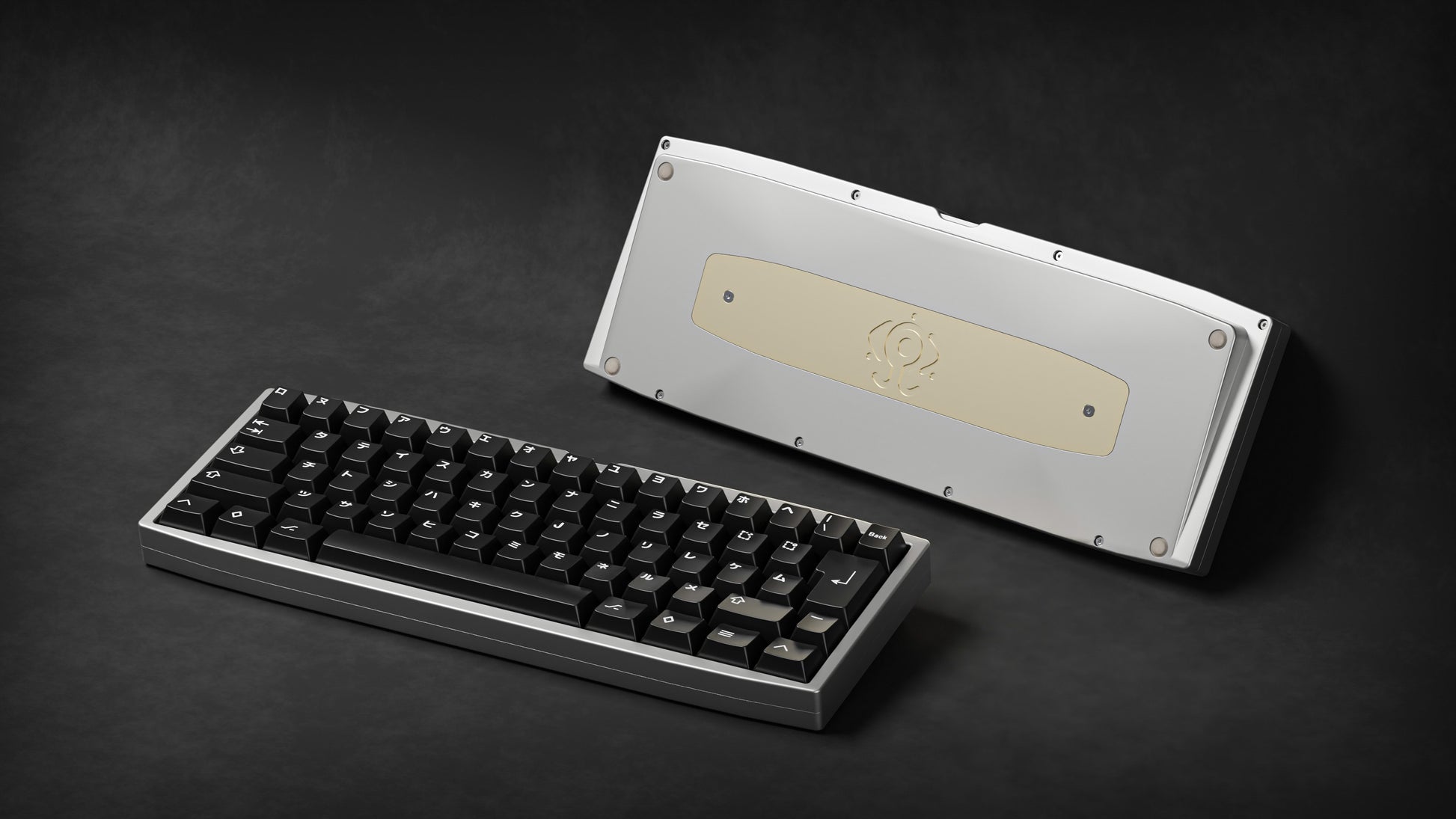

  • Color: Silver
  • Plate: Aluminum
  • PCB: Hotswap ANSI
Kit 2

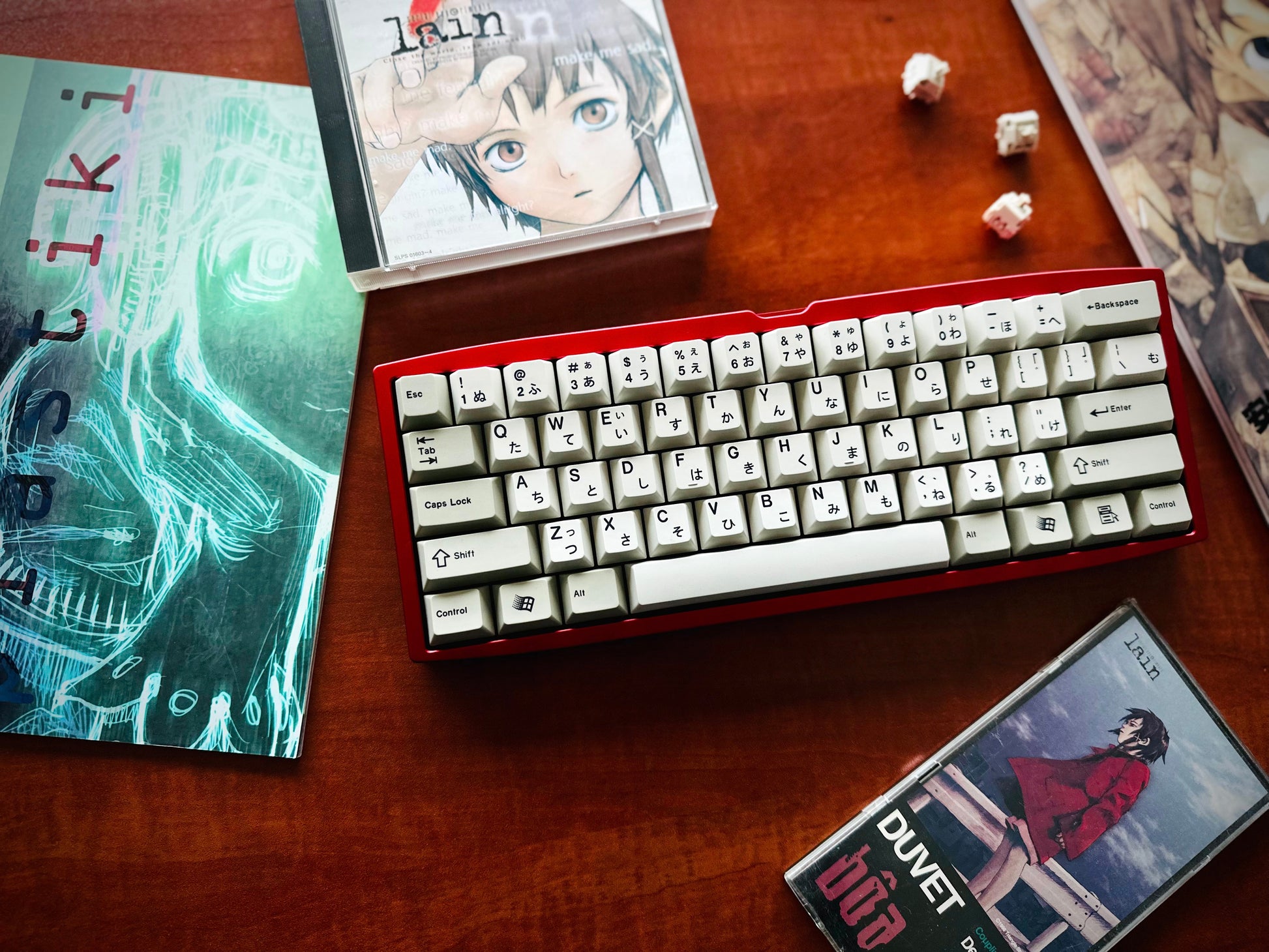

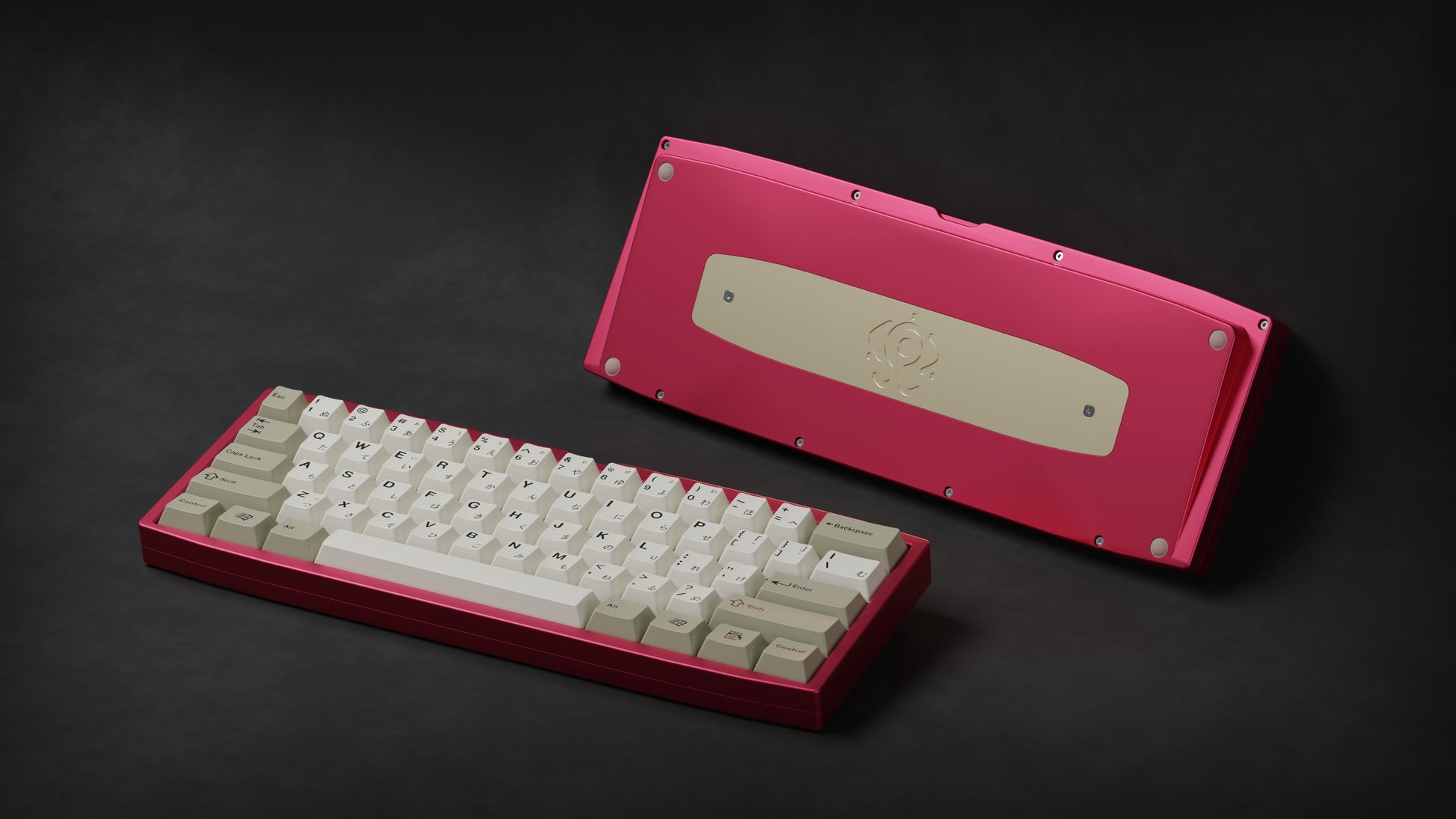

  • Color: Red
  • Plate: Aluminum
  • PCB: Hotswap ANSI
Kit 3
  • Color: Red
  • Plate: Aluminum
  • PCB: Hotswap ISO
The Navi60 is a 60% top mount/o-ring mount with a full CNC aluminum case and brass weight.

This project is a part of the #lainttl  (time to live) program. We aim to provide a high-quality keyboard for both keyboard and Lain enthusiasts.

Its design is inspired by Abe’s original design of Lain’s personal Navi computer/keyboard. The kit comes with a two-piece case with a brass weight that is engraved with the Copland OS logo.

Navi60 Specifications
(Case + PCB designed by Neil from DeskDaily)
  • 7° typing angle • Effective Keyboard Height (EKH) = 22.94mm
  • Case weight (including Brass weight) = 914g
  • Case material: 6063 Aluminum w/ Brass Weight
  • Brass weight sandblasted + anti-fingerprint/anti-tarnish coating
  • Hardware Materials: 18-8 Stainless Steel (case screws/daughterboard screws)
  • Mounting support: Top mount/O-ring mount
  • Plate Material: FR4, Aluminum, POM
  • PCB Specifications: ◦ PCB Thickness: 1.6mm
  • Unified Daughterboard includes ESD protection + fuse: https://github.com/Unified-Daughterboard/UDB-C-Legacy, QMK/VIA supported, PCB-mount stabilizer support

Layout:

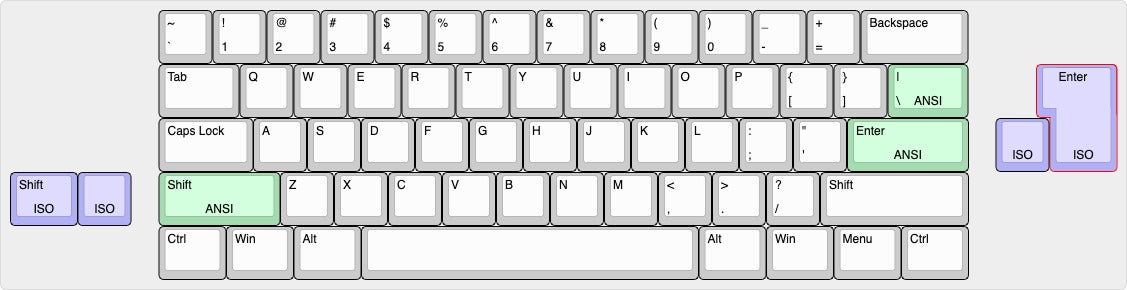

Hotswap

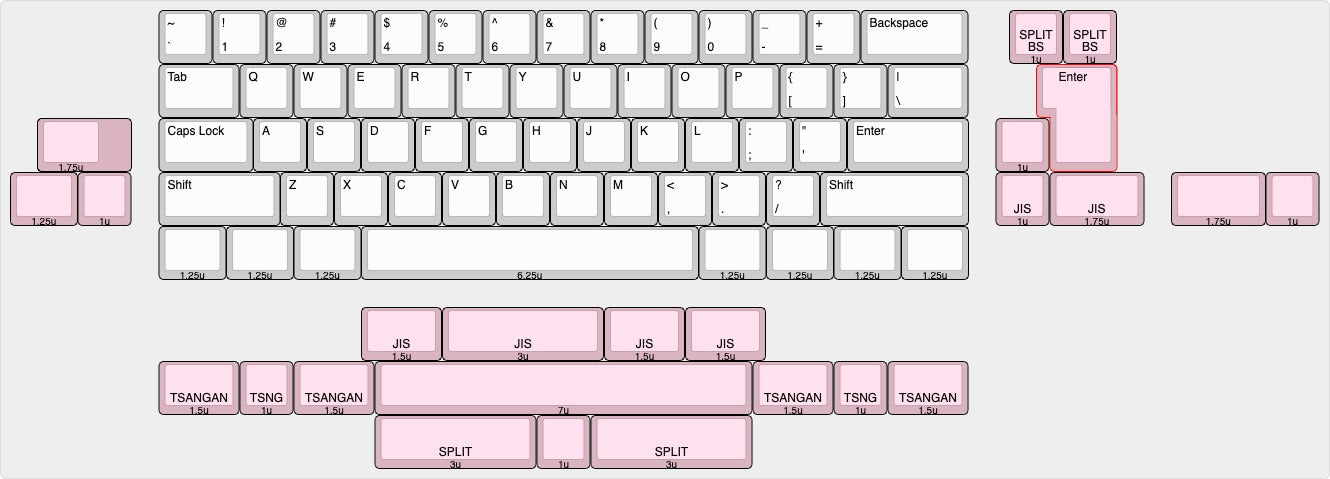

JIS Support (Solder only)

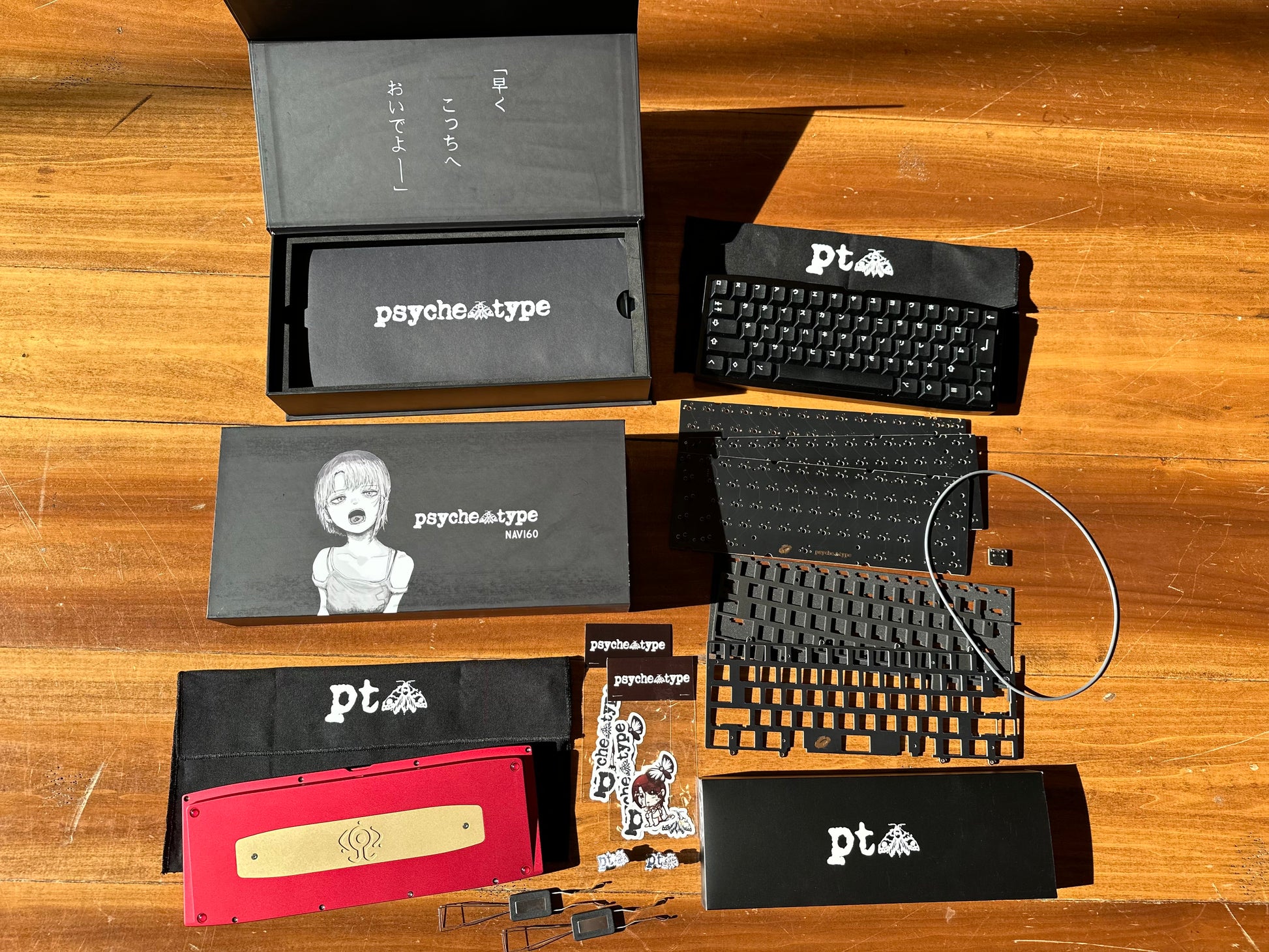

Kit Contents:

  • Two-Piece CNC Aluminum case w/ Brass weight
  • PCB
  • Plate
  • Unified Daughterboard w/ JST Cable
  • Plate foam
  • USB-C cable
  • Medium size O-ring from Graveshift (40A stiffness)
  • Keycap/Switch puller
  • 3M Rubber feet + Screws
  • 2mm hex key + 1.5mm hex key
  • Durock v2 stabilizers (smokey black kit with 2 additional 3u wires)
  • psychetype pin
  • psychetype sticker pack (art from Orange of OranArt Studio)
